Element: 1/3in. Monochrome, CCD
Lens: Fixed 3.6mm F: 2
Field of view: 710 Horiz.; 530 Vert.
Electronic Iris/shutter:
Auto:1/60-1/50,000 Sec.
Resolution: 380 TV lines
Illumination: Ambient light -I/R LED's
supply additional light in
low light conditions
Sensitivity: .1 lux. @ F: 1.8
Video Output: EIA std. 75 Ohm,
2/I interlace 1.0V P/P
composite video
Connections: 7" Video & Power lead wires
Power: 12 VDC @ 120mA

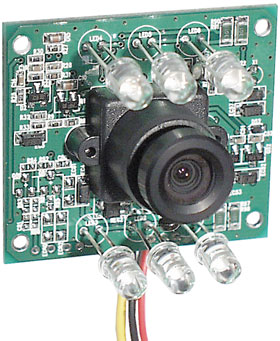

Super small board camera with Lens. I/R LEDs allows camera to "see" up to 5ft in total dark. Connects to any monitor or VCR with A/V inputs.
Includes power supply
W: 1-11/16" H: 1-11/16" D: 1-1/4" WT: .9
