Waveform Generator Module 8038


Waveform Generator Module 8038
Images/34670-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 34670 MP
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item

Did we sell out of a part and you want to buy more? You can possible buy directly from our overseas supplier. Some restrictions apply: general rule $50 per line item and a minimum $100 per order.

You can contact our source at:
Supplier: Aqua Jiang - aquajiang1@outlook.com

In your email, your Subject needs to be MPJA Customer and reference the MPJA stock number and quantity required. They will get back to you with pricing, lead time and shipping cost.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

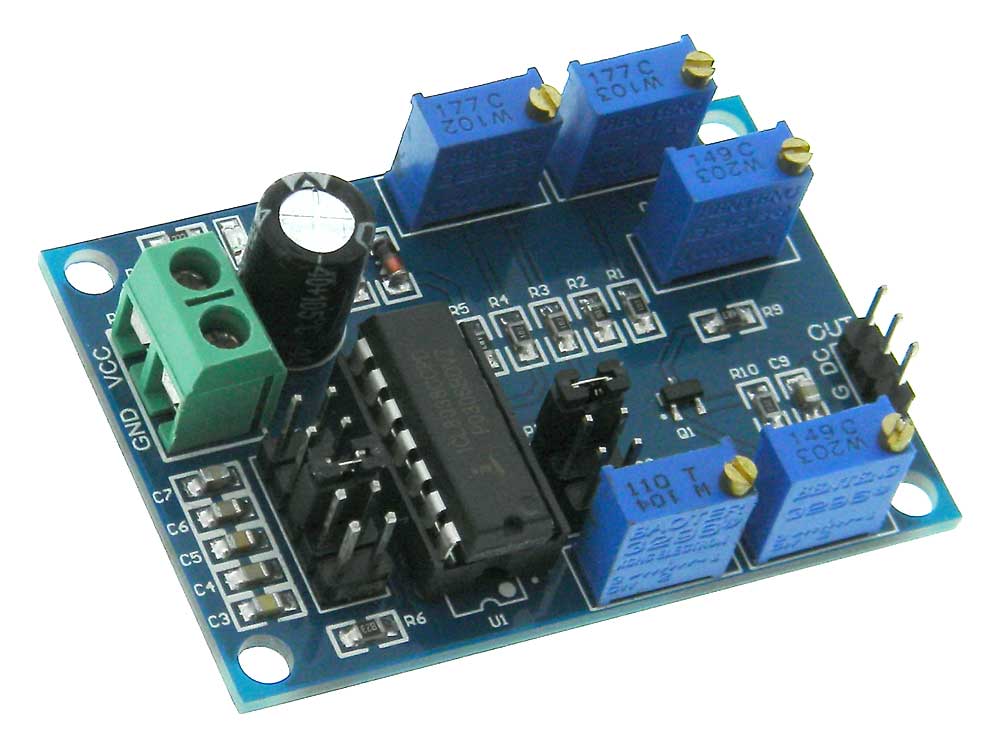

Handy module that generates selectable Sine, Square or Trianglar waveforms.
Power: 12-15VDC
Adjustable Output Level
Distortion: 1% Sine Wave
Square Wave duty cycle adj. 2-98%
Triangle Wave Linearity: 0.1%
Range: 10-450KHz in 5 jumper selectable overlapping ranges:
~10hz-450Hz
~90Hz-1.5KHz
~940Hz-15KHz
~6KHz-120KHz
~20KHz-450KHz
Adjustment Pot for fine Frequency adj.
AC & DC Coupled outputs
Power LED
Output: Header Pins 0.1Pitch
Power: Terminal Strip
L: 2-5/32" W: 1-1/2" H: 3/4" WT: .04
