Sold as Pair

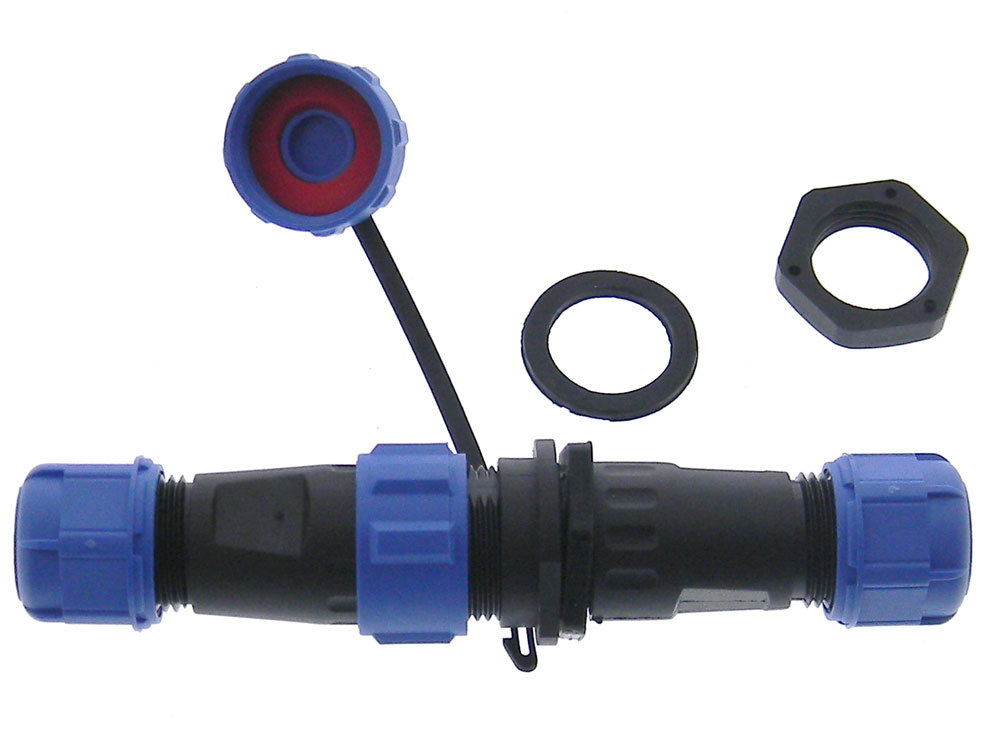

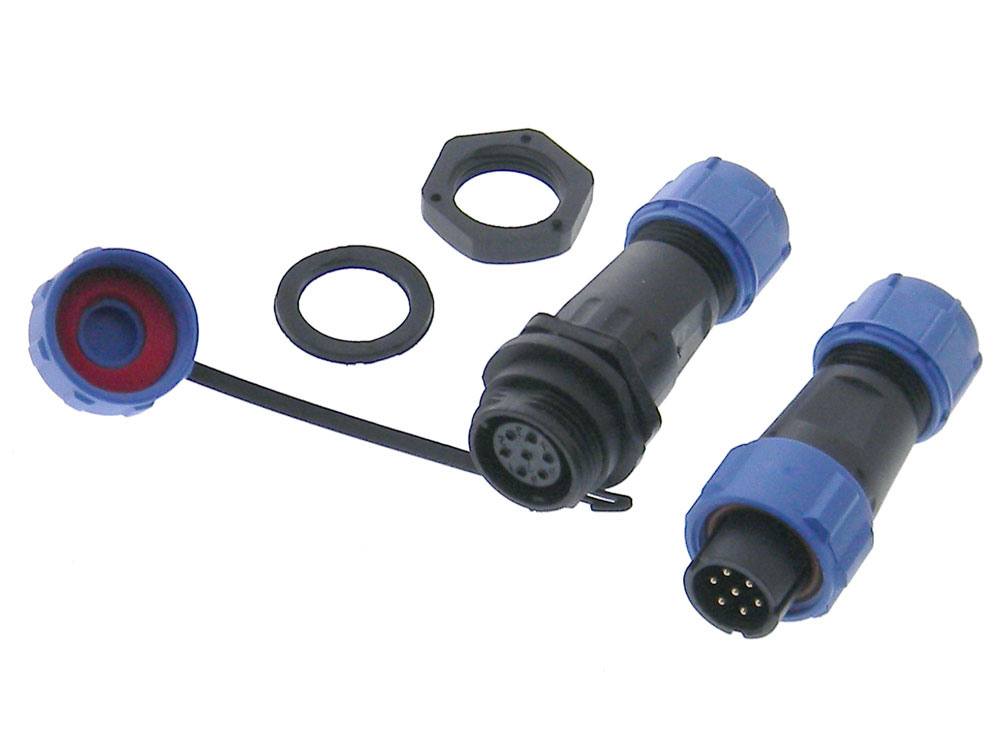

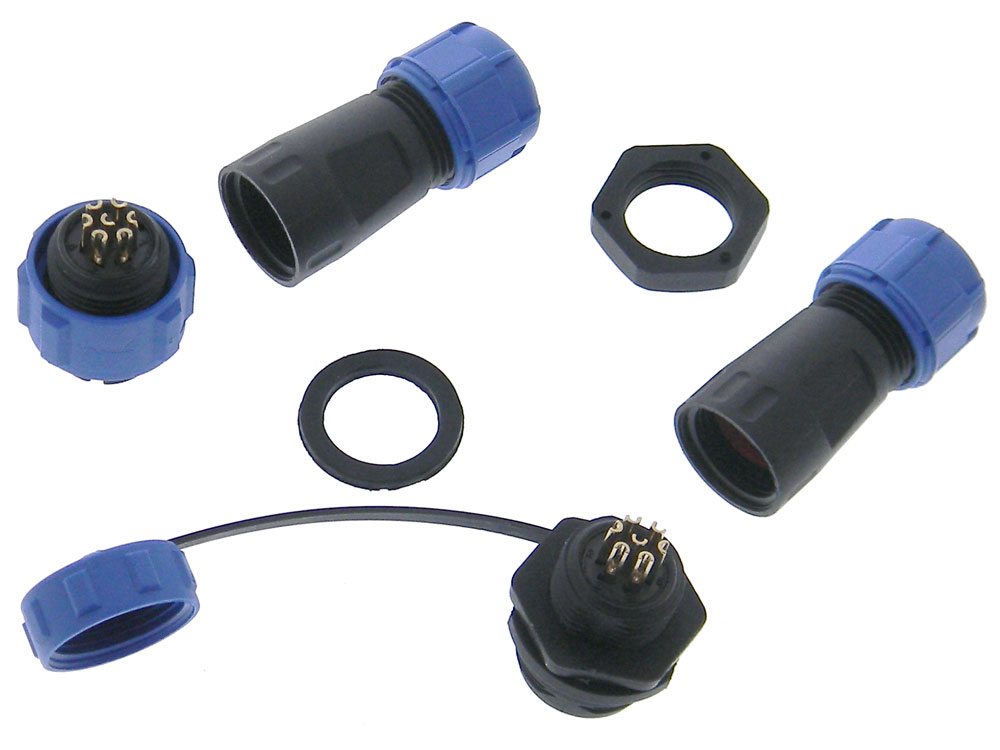

IP68 rated, plastic body, twist lock connector pair with 7 gold plated contacts and Sealing cap for Jack.
Cable end Plug and Jack Extra nut included for chassis mount the plug connector
Current: 5A max
Cable Range: ~4-6mm
Wire: <18AWG (0.75mm)
Initial Resistance: 5m Ohm
Insulation Resistance: 2KV
Nut Thread: M13-1.0 L: ~2" each DIA: ~3/4" WT: .04
