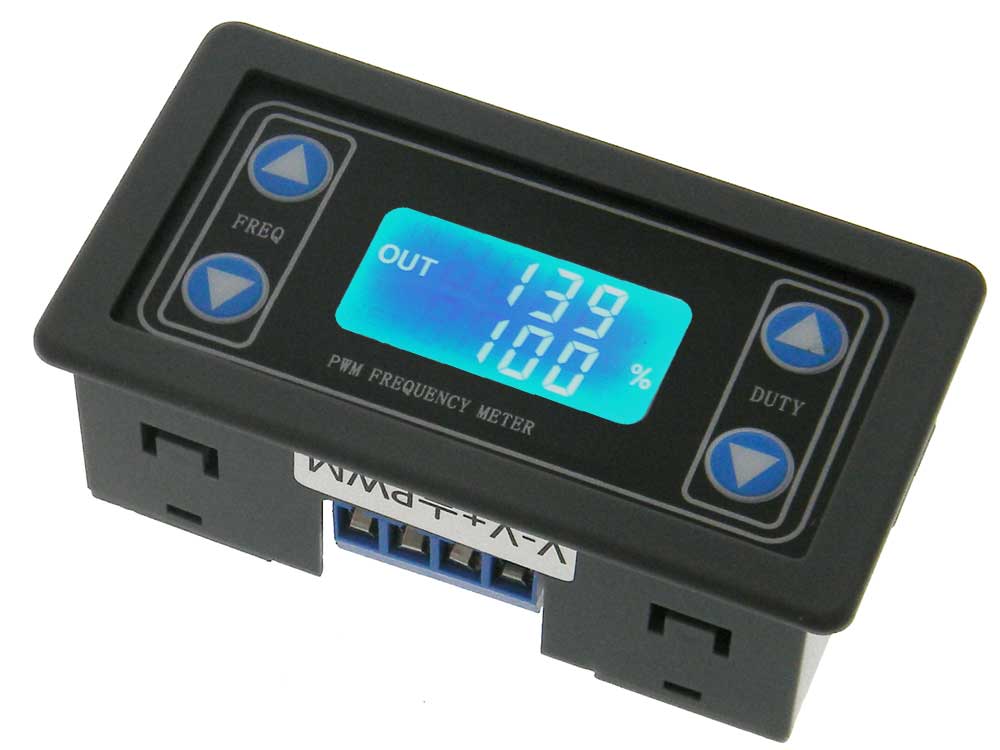

Snap-in Variable frequency & Pulse Width Generator module with back lit LCD Display.
Simple source of test pulses.
4 P B switches used to set the Frequency and Duty Cycle,
Short press for single unit increase or decrease
Long press for rapid increase or decrease
Auto save prevents setting loss due to power fail.
Power: 3.3 ~ 30V;
Frequency range: 1Hz ~ 150KHz; auto switching
A: 1-999Hz Resolution 1Hz (Display 123) no decimal)
B: 1KHz-9.99KHz Resolution 10Hz ( Display 1.23)
C: 10KHz-99.9KHz Resolution 100Hz (Display 12.3)
D: 100KHz-~150KHz Resolution 1KHz (Display 1.2.3)
Duty Cycle ~0-99%
Accuracy: ~ 2%;
Max Output Current: <30ma;
Output Voltage: ~Vcc (Input V)
Ambient temperature: -20 ~ +50 "C"
Cutout: 74mm X 40mm W: 80mm H: 43mm D: 27mm WT: .08
