Variable Frequency/Width Pulse Generator

Variable Frequency/Width Pulse Generator

34758-large.jpg  34758-1.jpg    California Proposition 65 Warning
Stock No: 34758 TE
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item

Availibilty: In Stock   Units: 83

Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).
View PDF Data Sheet

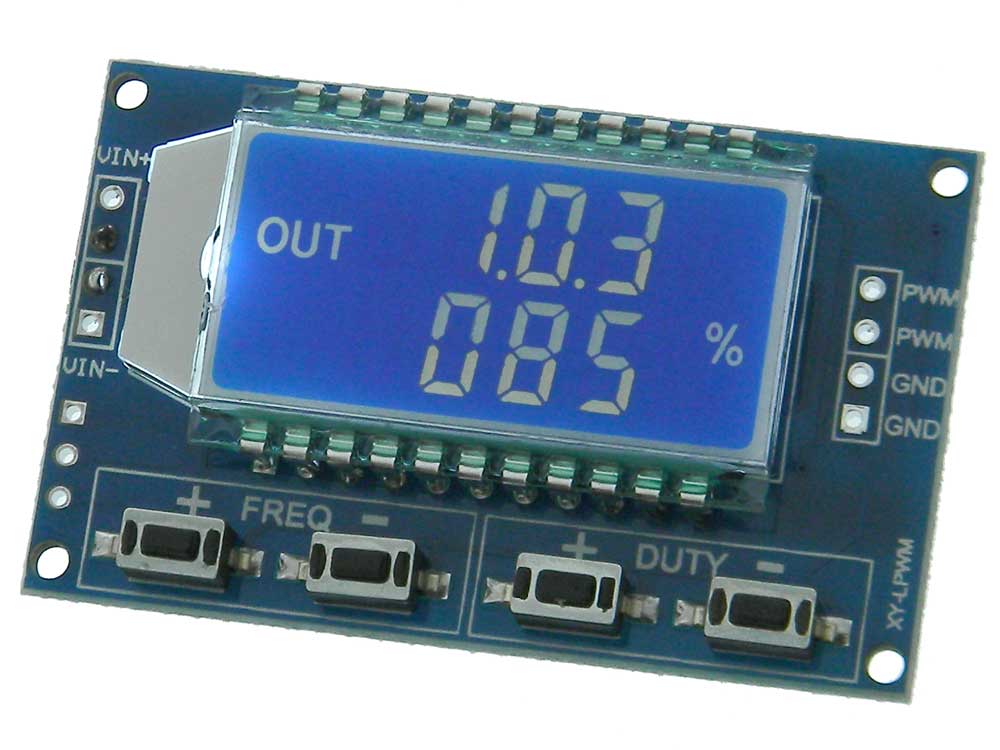

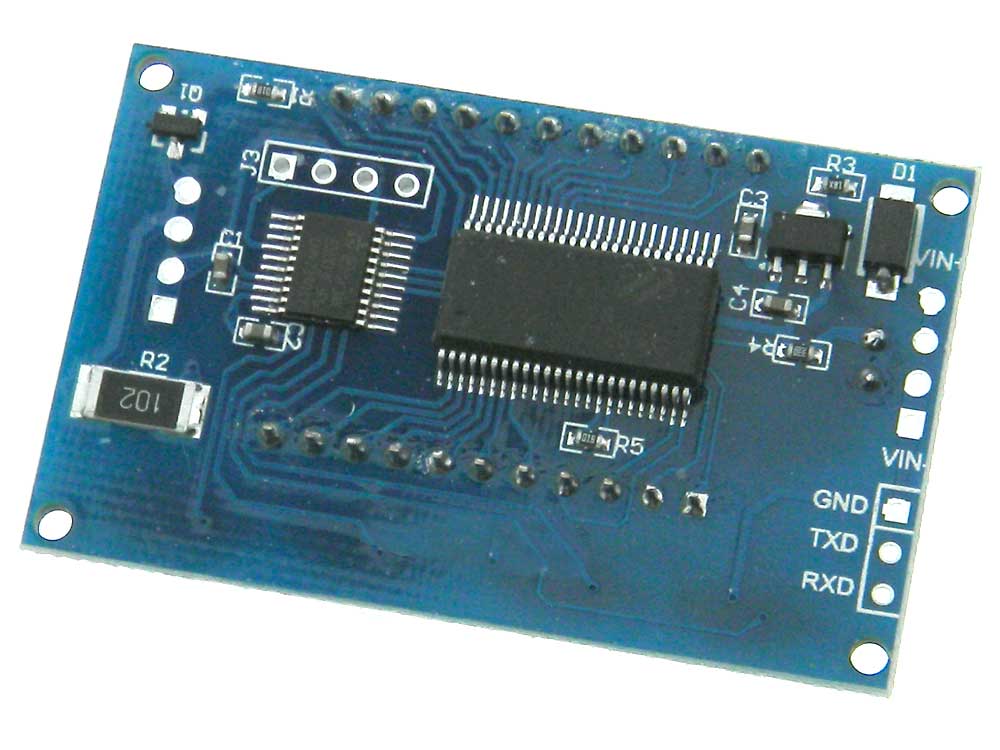

Variable frequency & Pulse Width Generator module with back lit LCD Display.
Simple source of test pulses.
4 P B switches used to set the Frequency and Duty Cycle,
Short press for single unit increase or decrease
Long press for rapid increase or decrease
Auto save prevents setting loss due to power fail.
Power: 3.3 ~ 30V;
Frequency range: 1Hz ~ 150KHz; auto switching
A: 1-999Hz Resolution 1Hz (Display 123) no decimal)
B: 1KHz-9.99KHz Resolution 10Hz ( Display 1.23)
C: 10KHz-99.9KHz Resolution 100Hz (Display 12.3)
D: 100KHz-~150KHz Resolution 1KHz (Display 1.2.3)
Duty Cycle ~0-99%
Accuracy: ~ 2%;
Max Output Current: <30ma;
Output Voltage: ~Vcc
Ambient temperature: -20 ~ +50 "C"
Connections: 0.1" pitch Solder Pads
L: 2-1/16" W: 1-1/4" T: 3/8" WT: .06

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
A Precise and Practical Test Instrument
So far, I have used 2 out of the three I ordered. 100% just right! Frequency and duty-cycle are right on, as confirmed by my 6.5 digit multimeter. You do need some finesse to mount it, though. Great addition to my lab.
34758 TE
Output voltage tracks the power supply voltage. With power supply at 5V peak voltage is 5 volts with a 45ns rise and 7ns fall as measured on a 500MHz scope. With power supply at 15V the peak output voltage is 15 volts with a rise of 53ns and a fall of 12ns.
- Bob, NC
Excellent Accuracy
Excellent square-wave generator at twice the price or more! All specs verified in our telecom shop. Below 200Hz the wave is not very square but has good edges. Usable duty cycle 10 - 90%. Rise time ~500ns. Nice looking display
