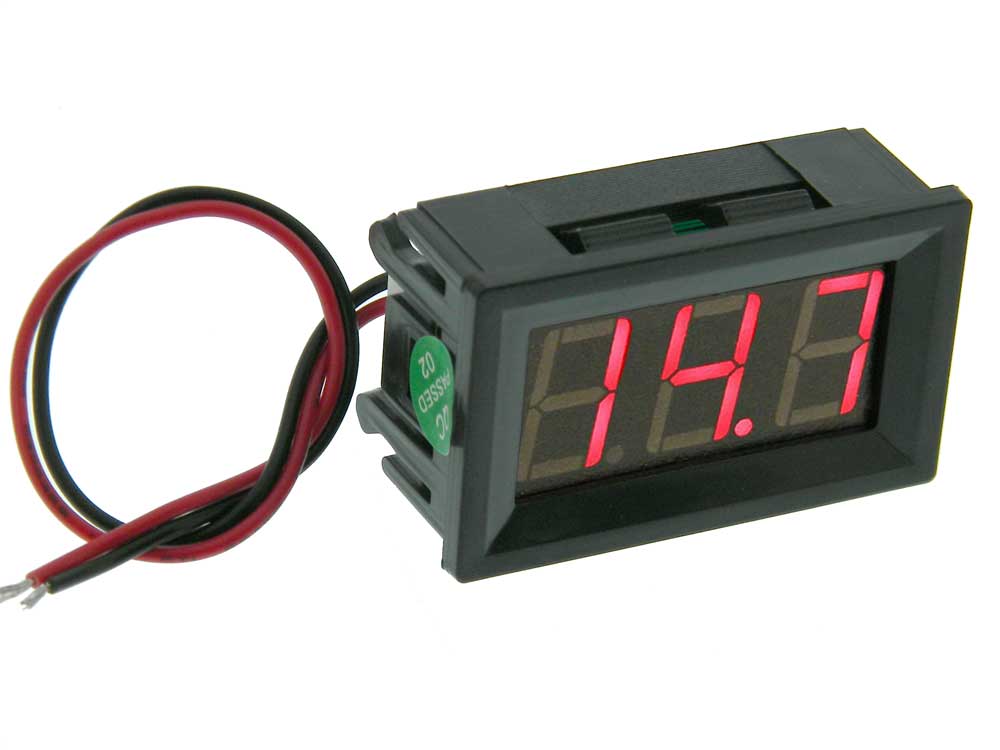

Universal Monitor for 6 to 48V batteries. 3 Digit mini LED panel Meter with adjustable Lower & Upper voltage alarm limits. Drop below the lower limit: the meter sounds an alarm & LED voltage Flashes, Go above the Upper Limit and again the alarm sounds & display LED display flashes
Remembers settings when not powered
INPUT: 4.5-50VDC (Self Powered)
CURRENT: ~10mA
Minimum Span (Hi/Lo Limits): 0.2VDC
Set resolution: 0.1V
Resolution: 0.1VDC
Cutout: 45.4mm X 26mm W: 47.8mm H: 28.8mm D: 22mm WT: .04
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
INSTALL IN AN AUTO WITH +13V AND +15V ALARM THRESHOLDS.
13/15V IS THE CORRECT RANGE FOR AN AUTO OR MARINE OR AIRCRAFT +12V SYSTEM REGULATOR.
CATCHING REGULATOR MALFUNCTION EARLY PREVENTS DAMAGE AND PROTECTS APPLIANCES IN THE AUTO, POSSIBLY PREVENTING A HIGHWAY BREAKDOWN.
WATCHING VOLTAGE WHEN ENGINE IS SHUT OFF SHOWS BATTERY QUALITY - VOLTAGE SHOULD DROP SLOWLY TO APPROX +12.6V. ATTACH TO LIGHTER PLUG.
