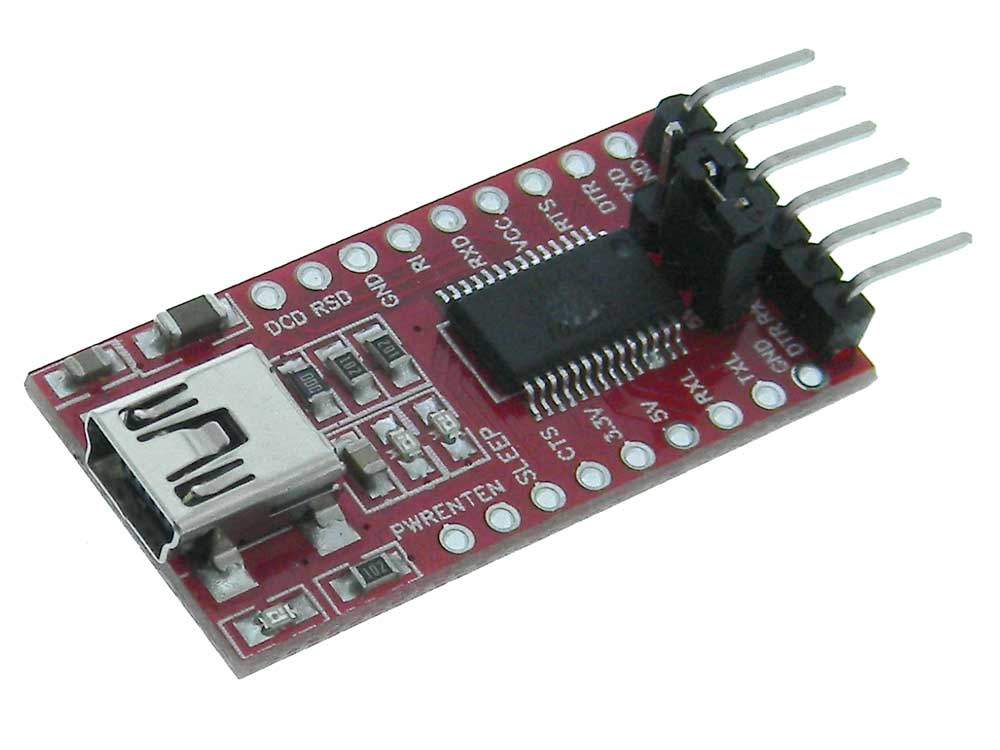

USB TO TTL Module for Arduino & Microcontrollers
USB-STC-ISP Module provides Support for USB 2.0 to TTL devices. Full Duplex asynchronous serial device to a USB host. Upgrade
Supports Windows® up through 10, linux 2.4 & up.
Chip: FTDI FT232RL Bridge controller
Power: 5, 3.3VDC From Host
Selectable 5 or 3.3V out for external Logic
Connections: .1” pitch holes
6 Pin (.1”) header for connection to TTL devices
USB 2.0 Mini B Jack
LEDs for Power, Rx & Tx
Drivers available at: www.ftdichip.com L: 1-1/2" Board W: 3/4" H: 1/2" WT: .02
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
The serial port appeared as /dev/ttyUSB0 and it works. Only grumble is about the USB mini-B connector. Who uses that connector these days? I had to dig up old cables from the junk drawer. My first cable didnt have D+/D- wires. 2nd cable worked.
- Bob U., MD
C A T Control & TTL to USB
I needed a way to convert the ttl level signals from a Rig Expert AA30.ZERO vector analysis board and the C.A .T. level signals from a Yaesu FT857D xcvr to USB. This board works perfectly in both instances.
John K
arduino USB capability
my arduino now has USB capabilities thanks to thiss product.
