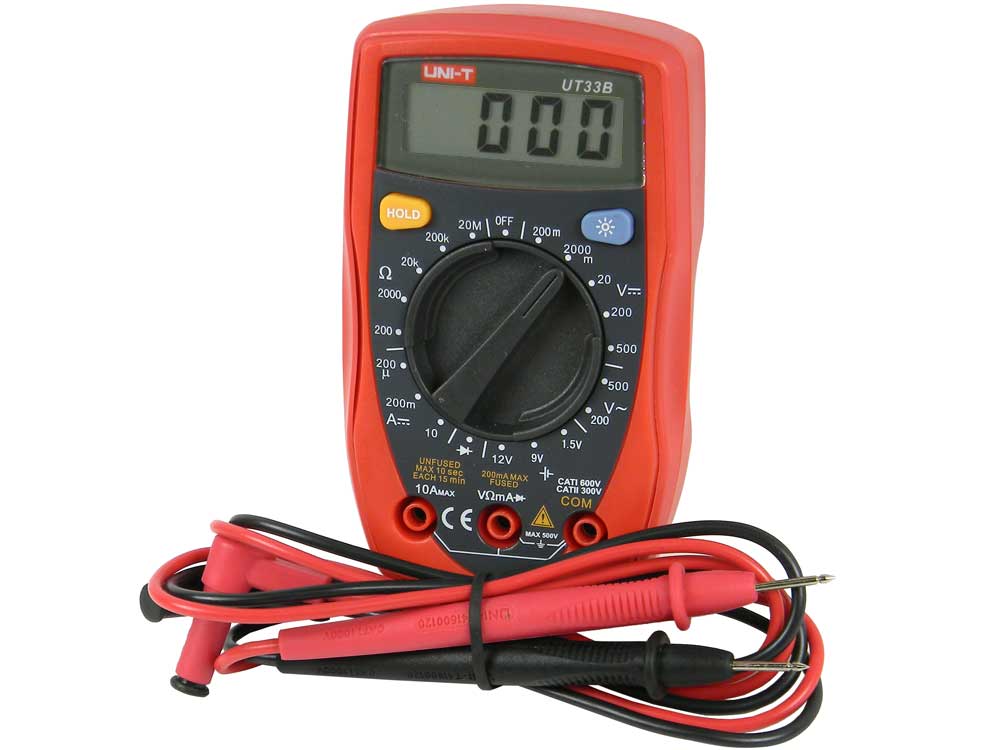

Light weight 6 function, Backlit, 3-1/2" digit hand held meter with 1/2" LCD display. 9V battery Not Included, test leads, instructions & Protective Boot. Fuse Overload protection.
CE listed; IEC 1010 CatII-600V Compliant
DC VOLTS & CURRENT
Current: 200uA,200mA,10A (10A Unfused)
Accuracy: .5% + 2 LS digit on 200mV
.8% + 2 LS Digit 500VDC
1% + 2 LS Digit (10% 10A) Current
AC VOLTS (Ave responding Calibrated in RMS Sine)
Accuracy: 1.2% + 10 LS Digit
Accuracy: .8% + 2 LS Digit (10% +-10LSDon 20M)
Battery Test: 1.5V/ 30W,9V/1.8KW, 12V/240W
Diode Test: 2.8 VDC open circuit L: 5-1/4" W: 3" T: 1-1/2" WT: .62
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I have a collection of DMs and now this is the one I carry when I am away from the bench. I like that it is simple, not autoranging and even tests batteries. No problems putting in the battery, just have to read the instructions.
- David Gibson, ME
OK multi meter
I actually use my multi meter mainly for continuity testing.
I like to have a good audible tone the meter does not have any audible tone.
Otherwise it seems to work as ecpected.
- Ralph Hulslander, NY
Cannot even get to the battery holder
How does one open the case?? I removed the screws but no way to open the case. What a waste!
It gets worse!!
Figured out there is a boot around the meter that has to be removed before being able to open case. OK done that!!
Now there is no battery holder!! Only contacts on one end no way to install batteries this is unbelievable.
