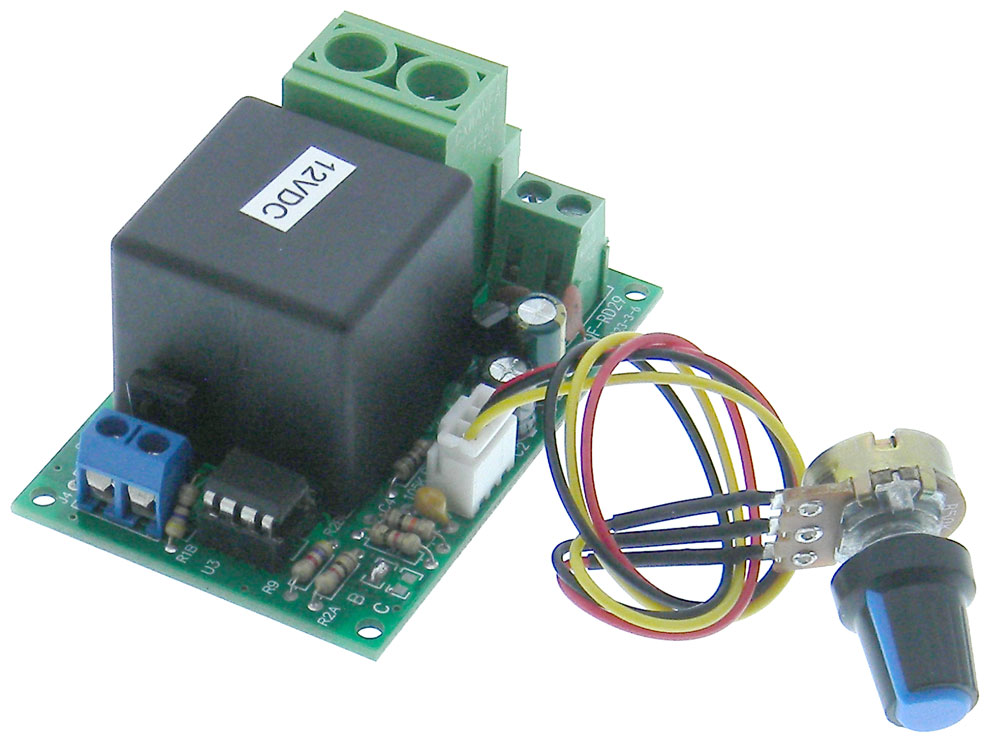

Time Delay Module, Adj. 1sec - 100sec. Delay on Break - 12V/80A


Time Delay Module, Adj. 1sec - 100sec. Delay on Break - 12V/80A
Images/38241-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 38241 RL
  Be the first to review this item
$10.95


Availibilty: In Stock   Units: 32
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

High current, Adjustable General use relay module provides approximately 1sec -100 Seconds. Delay on OFF (Break).
Trigger Input turns ON Relay & starts Turn OFF delay Time, after delay, Relay turns OFF
NOTE: Trigger is locked out for entire timing cycle.
Trigger: Low level signal (Ground) <25mS.
LED Relay energized indicator.
Power: 12DC @ ~50mA energized
Relay:
Contacts: SPST-NO
Rated: 80A @ 28VDC
Timing Range: <1 to ~100sec.
NOTE: Control is a single Turn! Precise Adjustment
is tricky.)Relay: SPDT 80A@28VDC
LED lights when contacts close.
Terminal strips In & Out.
7" Pot leads
Operating Temperature: -25°C ~ 85°C
Humidity: 5% to 95% RH
L: 2-5/8” (67mm) W: 1-3/4” (45mm) H: 1-1/4” (34mm) WT: .2
