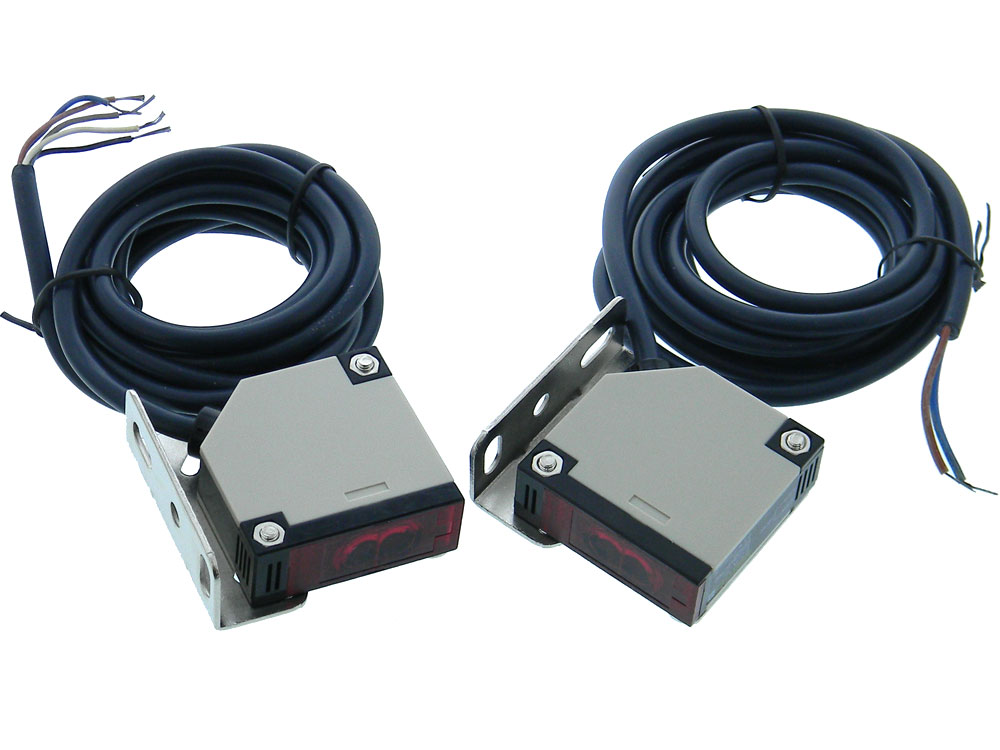

Thru Beam Type Opto Interupter Sensor 12VDC - SPDT Relay


Thru Beam Type Opto Interupter Sensor 12VDC - SPDT Relay
Stock Number: 37986 HD
  Be the first to review this item
$12.95


Availibilty: In Stock   Units: 19
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Small General-purpose Photoelectric Sensor.
"Dark" NO Contact ON (Beam Blocked)
Infrared (660nM) Thru-beam Photo Electric Sensor and I/R Source
Power:12VDC @ ~2W
Range: 5m 10% max
Response Time: (ON OFF): 30ms max
Turn ON Delay: ~1.5ms
Operating Temperature:-25C to 55C,
Operating Humidity:45% to 85% (No icing or condensation)
Relay: SPDT
Rated: 3A / 250VAC
Leads: ~1.9M
Includes Mounting Hardware
L: 59mm W: 50mm T: 18mm WT: .8
