Compact, microprocessor based, dual threshold digital thermostat with isolated dual relay outputs for cooling and heating applications.
Auto switching between Heat & Cool Modes
Heat & Cool Start Delay
Programmable Set Points
Power OFF Memory No need to re-enter settings
Water resistant Probe
Display: 3 Digit 0.56" Red LED
Operating Mode: Dual Red LEDs ("Heat" & "Cool")
Power: 12VDC/ 9VAC
Relay energized: <30mA
Range: -50 to +110°C
Resolution: 0.1deg -9.9 to +99.9 "C"
1.0deg. <9.9 & > 99.9 "C"
Measurement: 0.1 Deg.
Setting: 0.1 Deg.
Hysteresis: 0.1 Deg.
Refresh Rate: 0.5sec.
Sensor: 10K ohm NTC probe (.5m leads with mini connector)
Operating Temp. Range: -10 to 60deg. C; 20-85% humidity
Relay (2): SPST-NO
Rated: 5A@250/125VAC 10A/30VDC
Terminal Strips for Power & Relay contacts.

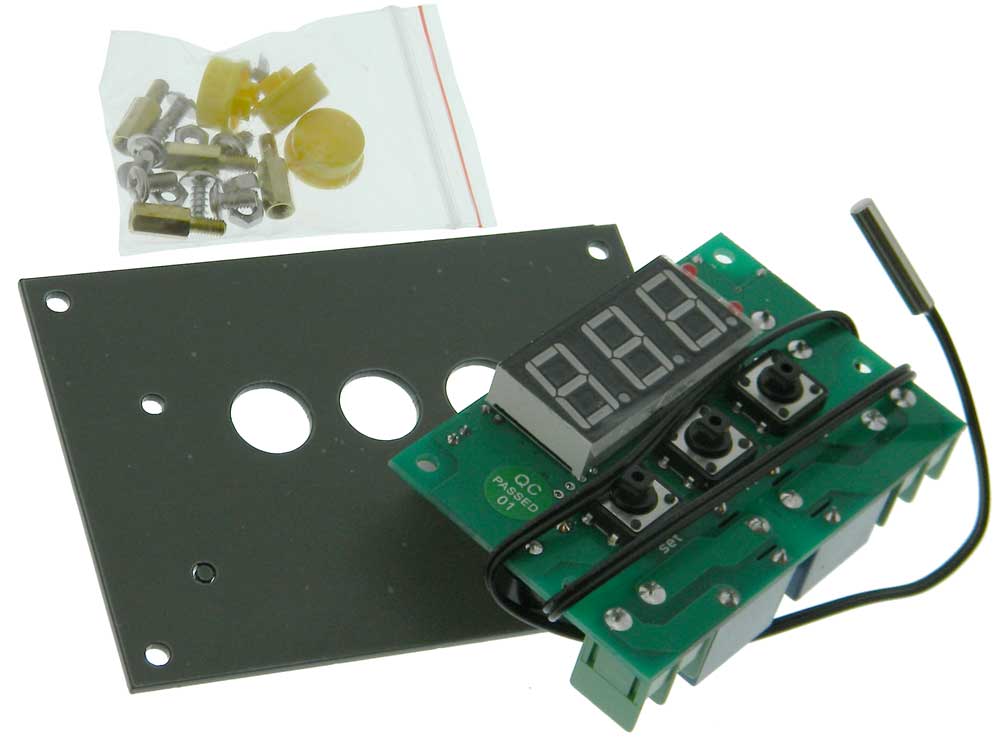

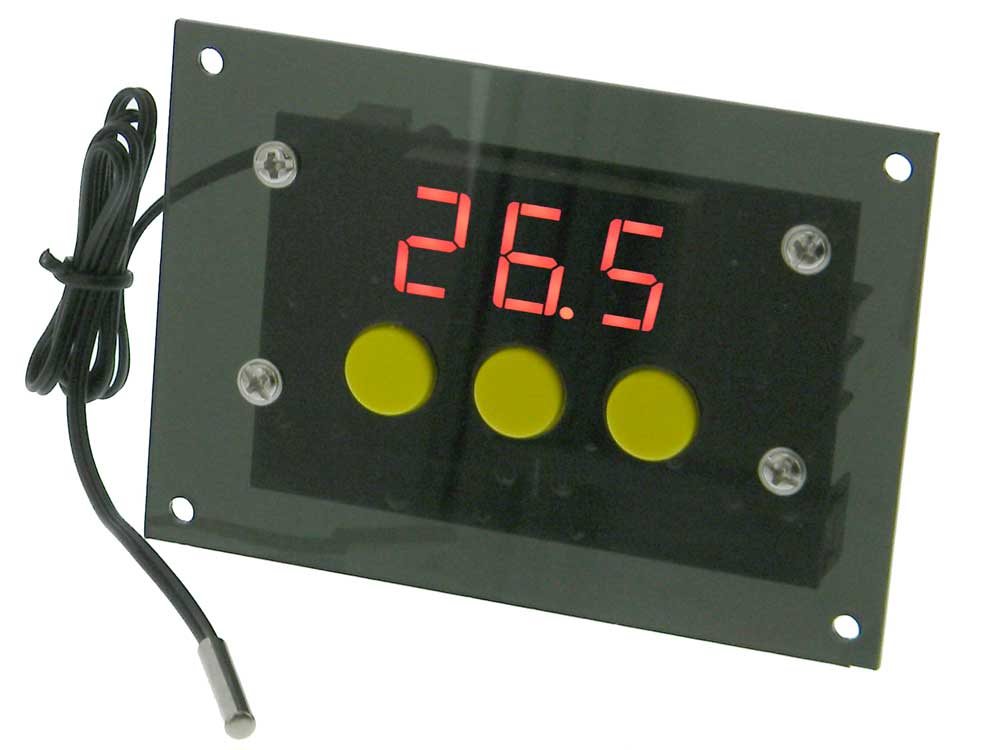

MINOR ASSEMBLY REQUIRED Board W: 3-1/8" H: 2" D: 1" Assembled: W: 3-15/16" H: 2-3/4" D: 1-1/8" Ship WT: .2
