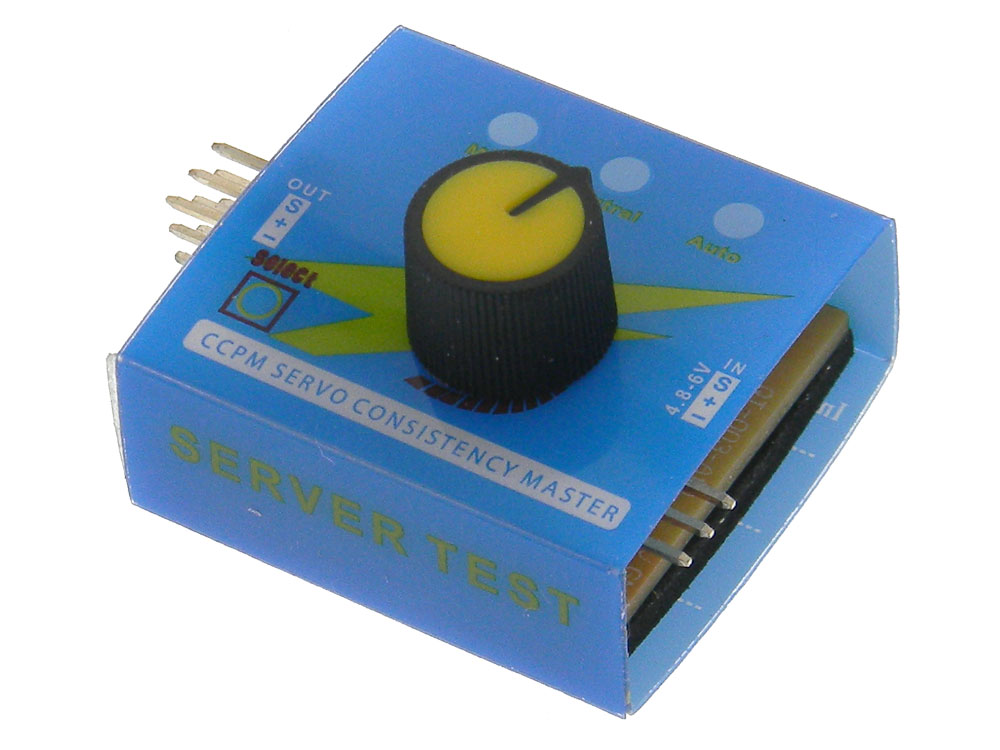

Tester For Small Servo Motors

Tester For Small Servo Motors
Stock Number: 37261 TE
  Be the first to review this item

Availibilty: In Stock   Units: 21

     Email this to a friend

Detailed Description

View PDF Data Sheet

Handy tester for hobby servo motors. Simple plug & use; ideal for field testing. Connect up to 3 motors to compare function & reaction times or just functionaly test one.
Power: 4.8-6VDC
Output: ~15mA
Output Signal: 1.5ms ± 0.5ms
Connections: 4 x 3 Pin / 0.1" pitch Headers
3 Modes: Sequentially selected by P/B switch
1: Manual - Control the position of the servo(s) using the Knob.
2: Neutral - Automatically centers (Neutral position) the servo.
3: Auto - Drives motor in an alternating, back-n-forth motion.
L: 46mm W: 32mm H: 22mm O/A WT: .02
