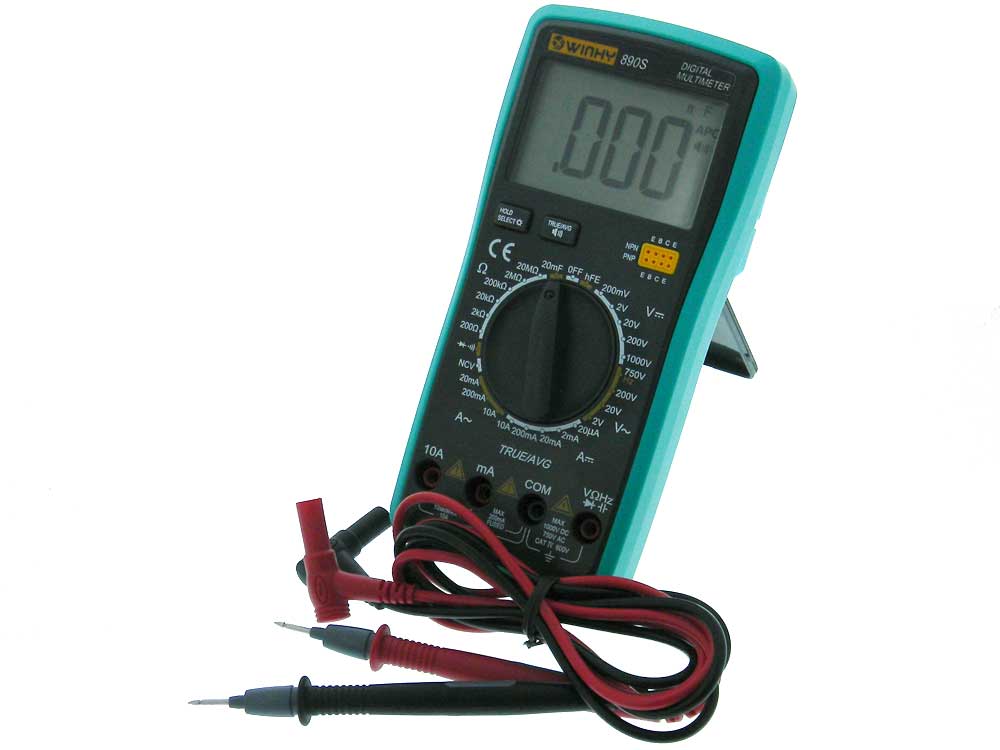

Talking, High tech. 10 function, Backlit, 3-1/2" digit hand held meter with 1" LCD display.
True RMS/Average Measurement Selection
Includes 9V battery, test leads, instructions
Fuse Overload protection.
CE listed; IEC 1010 Cat III-1000V Compliant
1: To Turn OFF Voice; Press and Hold (~3sec.) "TRUE/AVG" Button
2: To Read Frequency: Select 750VAC Range- Press”HOLD/SELECT"
3: To Turn on Backlight: Press & Hold (~3sec.) "HOLD/SELECT" Button
Backlight will turn off after ~10seconds
4: Meter is Auto Off will turn off after ~20min SPECIFICATIONS DC VOLTS & CURRENT
Accuracy: .5% + 3 Counts on 200mV-200V
.8% + 10 Counts 1000VDC
Current: 20uA, 2mA, 20mA, 200mA,10A
Accuracy: .8% + 10 Counts on 20ua & 2mA
2% + 30 Counts on 20mA-10A AC VOLTS (RMS/AVG)
Frequency Response: Sine/Triangle: 40Hz-1KHz
Other Waveform: 40Hz-200Hz
Accuracy: .8% + 5 Counts on .2-200V
1.2% +10Counts on 750V
Current: 20mA, 200mA, 10A
Accuracy: 2% + 30 Counts RESISTANCE
Ranges: 200,2K,20K,200K,2M,20M Ohms
Accuracy: .8% + 5 Counts on 200 ohm
.8% + 3 Counts on 2K-2M
1% + 25 Counts on 20M CAPACITANCE
Ranges: 20nF, 200nF, 2uF, 20uF, 200uF, 2mF, 20mF
Accuracy: 3.5% + 20 Counts on 20nF-20uF
5% + 10 Counts on 200uF-20mf OTHER FUNCTIONS
Frequency: <3KHz (Select 750VAC Range- Press ”Hold/Select” Button
Diode Test: ~3-4VDC open circuit
hFE: ~1mA test current
NCV: “Near Field AC” Beep Rate High for near/Low for far L: 7-1/4" W: 3-1/2 T: 1-7/8" WT: 1.2
