MFG: MINEBEA
P/N: 23LM-K202-33V
NEMA: 23
COIL: 5VDC/5.6ohms/1.1A
TYPE: 2 Phase Uni-Polar 4 lead
STEP ANGLE:1.8 deg

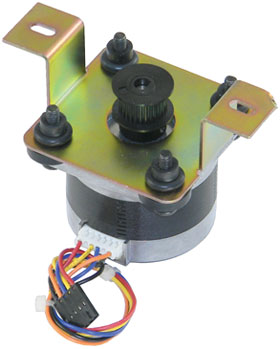

Custom motor with a flatted .25” dia. X 3/4” steel shaft with a 7/8 dia., 28 tooth, plastic cog belt gear attached by a set screw. Ball bearings, 6" leads, 4 corner mounting holes, removable steel mtg. bracket with shock mounts.
L: 1-5/8"(Body) SQ: 2-3/16" WT: 1.1
