Stepper Motor. NEMA 17. 10.2V. with Pigtail

Stepper Motor. NEMA 17. 10.2V. with Pigtail

33356-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 33356 MS
 Review Average:
 Number of Reviews: 4
 View ReviewsReview this item

Availibilty: In Stock   Units: 52

Email this to a friend

 Detailed Description
View PDF Data Sheet

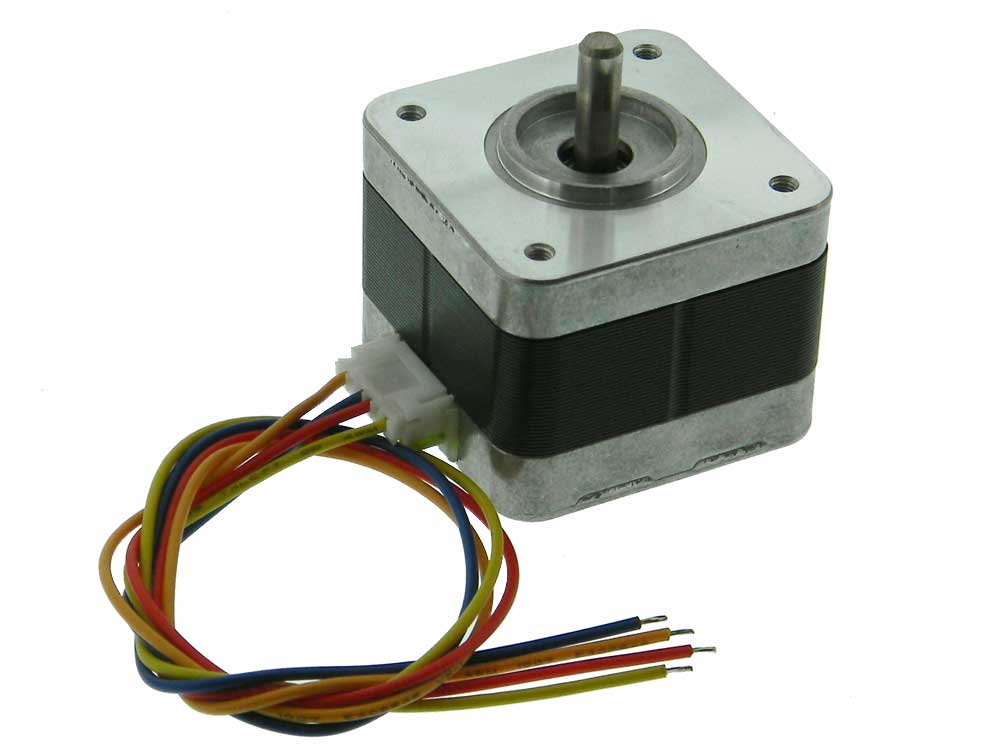

NEMA 17 Stepper Motor with 9” Pigtail Connector
P/N: 17PM-K077BP03CN
COIL: 10.2V/.3A/34ohm/60mH
TYPE: 2 Phase Bi-Polar 4 lead
STEP ANGLE: 1.8 deg
280mN/m (39oz/in) holding torque. 5mm dia. X 12mm long shaft. 4 M3-0.5 Threaded mounting holes. 4 pin (6Position) connector.
Includes 9" Pigtail connector
SQ: 1-5/8” L: 1-1/2” (Body) WT: .52

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
Works Great!
Great performance for the price and closely matches the advertised specs. Ill be buying more of these beauties in the future.
- John Pasichnyk, NY
Nema 17 stepper motor
Good little stepper, works great for what Im using it for. Paired them with a4998 drivers, the control and response of the motor is great. Feels well built. Very good value, will buy again.
- Mark, CA
First time ordering stepper Motors and they are solid. All I know is that they work.
- Seven B, GA
High inductance loser
Whether you want to waste your money on this depends on how much performance you want to lose. If youre using an imported TB6600-based style driver, the figure of merit in terms of how fast you can make it go is basically the product of the coil current and the coil inductance, the lower the better. At 18 amp-millihenries this is one of the worst motors around, and with the style of driver I mentioned it basically doesnt make any difference what the current is you just set it on the DIP switches and the driver comes up with it so long as the supply has the POWER not current. I wouldnt leave a review at all except when I attempted to get tech support by email from these yoyos it was returned unaccepted as spam which is an insult to all you other decent customers out there and you know what THEY REFUSED TO FIX IT so dont expect to get any support from or be able to return anything to these jokers!!!
