We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

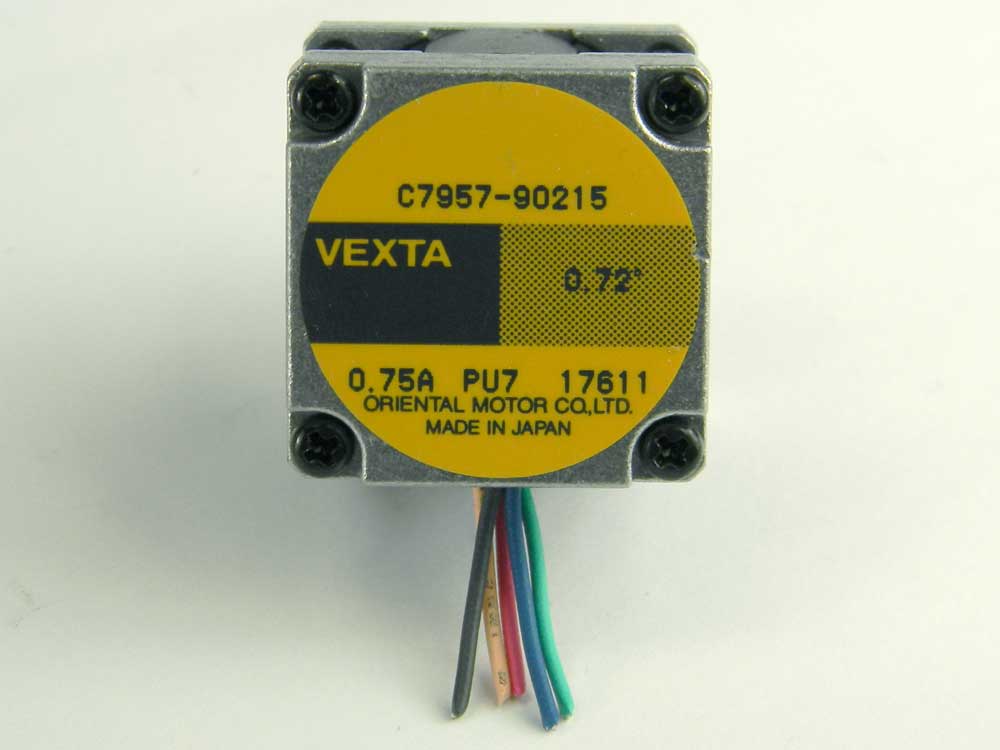

MFG: ORIENTAL MOTOR P/N: C7957-90215 NEMA: 11 COIL: .75A/1.2 ohm Pentagon TYPE: 5 Phase Bi-Polar 5 lead STEP ANGLE: .72deg/Step

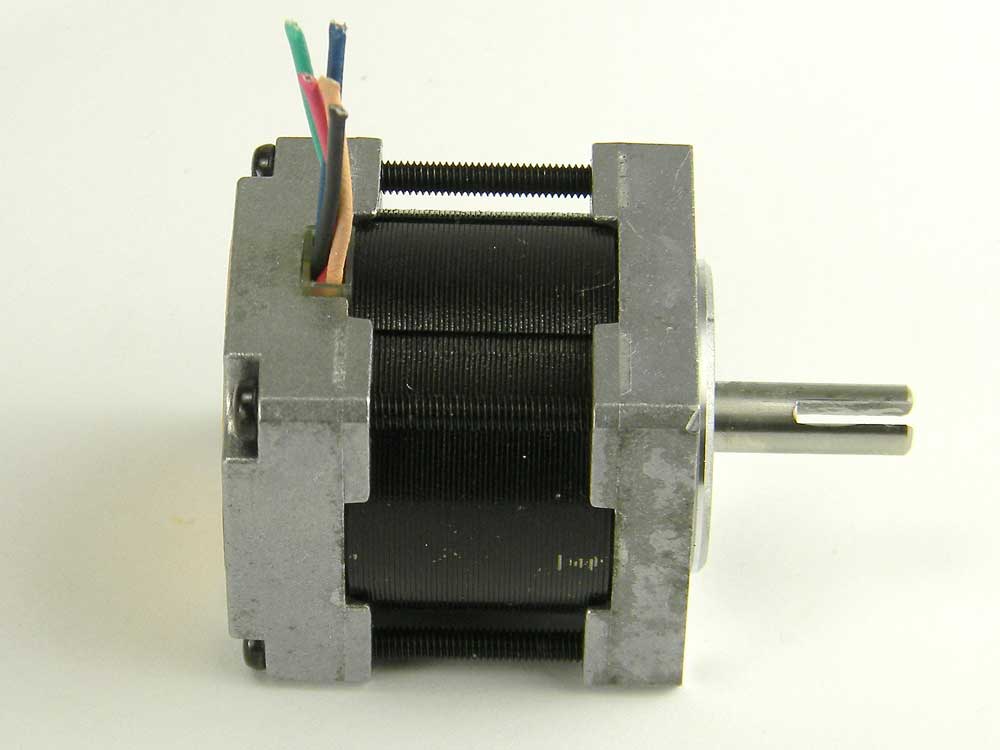

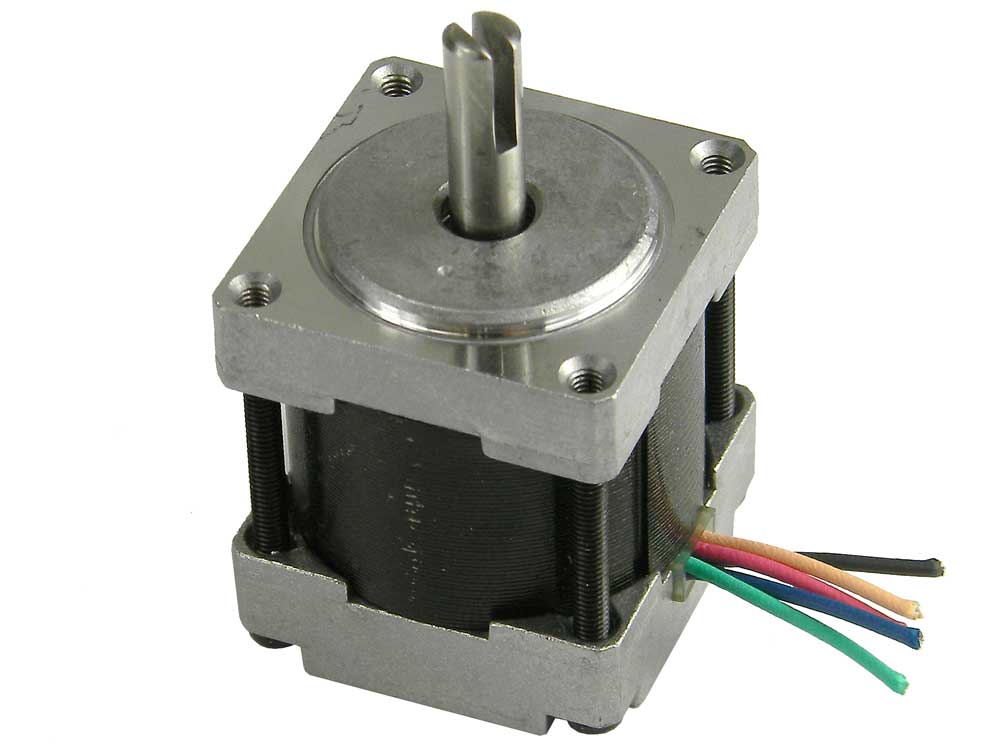

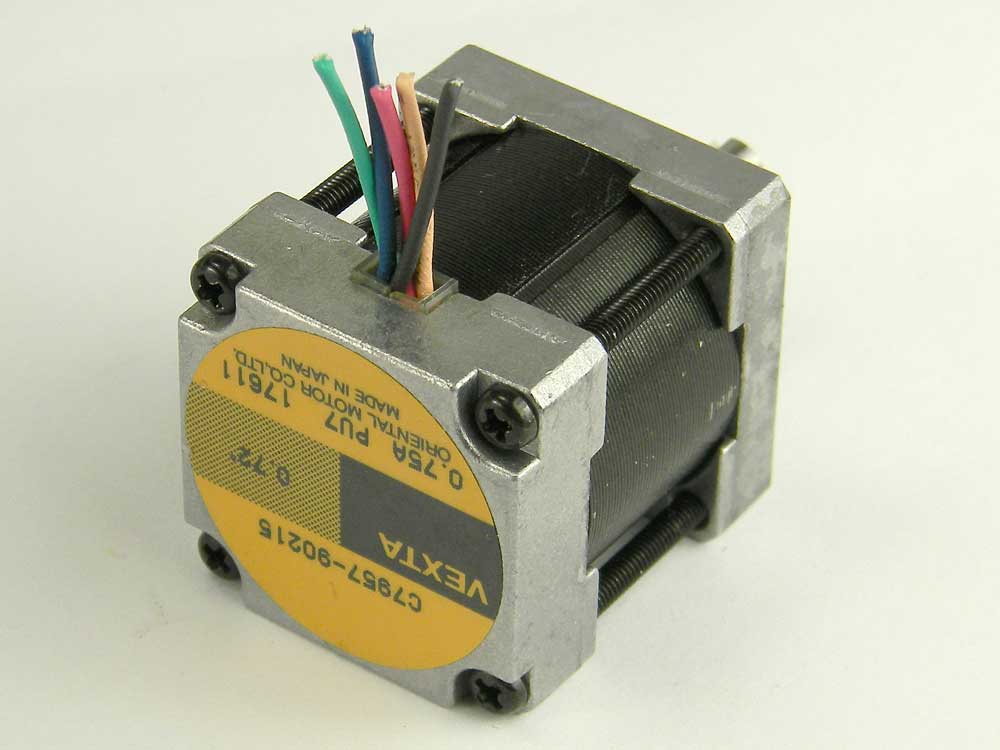

USED VEXTA Pentagon drive Motor, 5mm dia. X 14mm steel shaft with 8mm slot. 4 corner m2.5x2.5mm mounting holes. SHORT 1/2" wire leads L: 1-1/4" (Body) SQ: 1-1/16” WT: .3
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I just received this stepper, have not had time to hook it up but it seems to be exactly as advertised - used but in good condition. This is a 5-phase stepper so it will not work with typical Arduino motor shields, which expect 2-phase steppers. Here is some information comparing 2-phase with 5-phase.
