We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

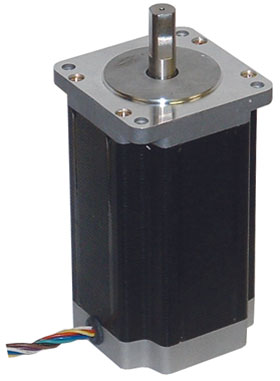

P/N: 86BHH150-200E-37BS (85BYGH450C-01) NEMA: Size 34 COIL: Unipolar:8.0VDC/4 Ohms/24mH/2.0A Hold Torque: 63Kg. cm
Bipolar Series:11.2VDC/8 Ohms/94mH/1.4A Hold Torque:89Kg.cm
Bipolar Parallel: 5.6VDC/2 Ohms/24mH/2.8A Hold Torque:89Kg.cm TYPE: 4 Phase Uni-Polar/Bipolar 8 lead STEP ANGLE:1.8 deg
New step motor, 14mm (.55") X 35mm (1-3/8") steel shaft with double Flats. 4 corner mtg. holes. 19" leads.
Compatable Driver: Order 17452-MS L: 6" Body Sq: 3-3/8" WT: 12
