Stepmotor Simple Controller

Stepmotor Simple Controller

34114-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 34114 MS
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item

Availibilty: In Stock   Units: 22

Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).
View PDF Data Sheet

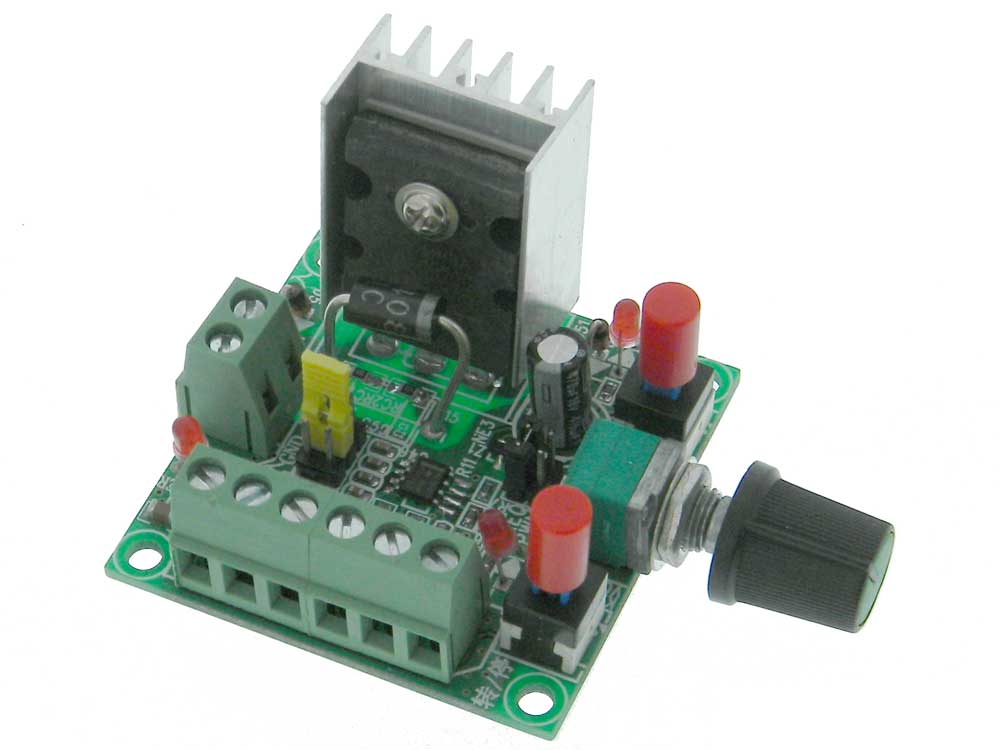

Compact, basic single channel stepper motor controller designed for testers or simple X Y or Z drive.
Simple fearures provide the basic signals to a driver.
Power: 15-160VDC OR 5-12VDC (NOT BOTH)
Outputs: Enable, Direction & Pulse (Clock)
Level: 5-12V Power: Follows Input Power Voltage (5-12V Output)
15-160V Power: 12V Output
5V Input Driver: 5V Controller Power: No Resistor needed
5V Input Driver: If you use 12V or 15-160V Controller Power; you
must place 680 W 1/4W Resistors in series
12V or Wide Range 5-15V Input Driver: The Resistors are not needed
Selectable Output Range: High: 5.8KHz-127KHz
Medium: 590Hz-15.8KHz
Low: 82Hz-2.3KHz
Onboard variable control.
Run/Stop (Enable) alternate action Pushbutton Switch
Forward/Reverse alternate action Pushbutton Switch
Fwd/Rev LED
Run/Stop LED
Power LED
Configurable Output for Either Common Anode or Common Cathode Motor Driver inputs
L: 1-15/16" (Board) W: 1-15/16" H: 1-1/2" WT: .1

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
Square not Pulse
Stepper motor drivers are expecting pulses, not square waves. This unit produces variable frequency square waves, not pulses. Depending on the driver that you are using, you might get some weird results at some specific speeds.
Wayne Smith
