INPUT: 10-42VDC (32V Nominal) Motor Power
5VDC for Opto-isolators OUTPUT: Adjustable up to 4.5A max. STEP: Selectable Full & 1/2-1/8-1/16 Microstep

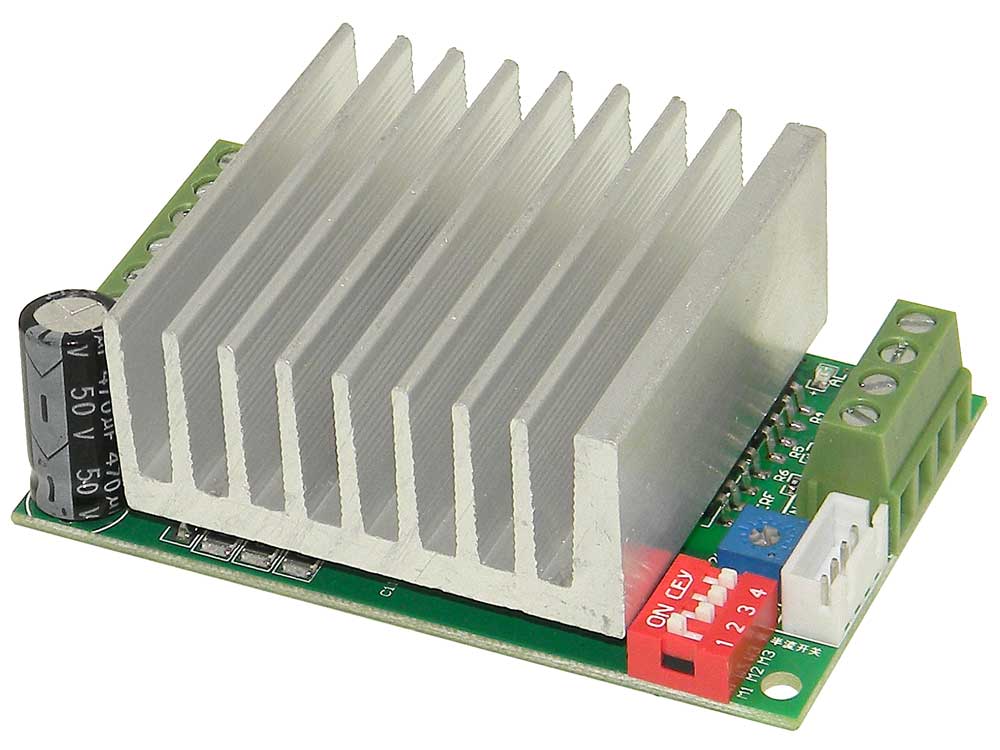

Compact driver using the TB6600HG IC. Full bridge driver for 4 or 6 wire stepmotors.
Automatic drop to 1/2 current with no step Input.
Over temperature & current shutdown.
Under Voltage lockout
Opto-isolated Step, Direction & Enable Inputs. (Active Low).
Terminal strip for Outputs
Terminal Strip & HT-396 4 Pin Header for Inputs
Power, Run & Alarm LEDs L: 3-3/16" (82cm) W: 2" (51cm) H: 1-1/4" (33cm) WT: .3
