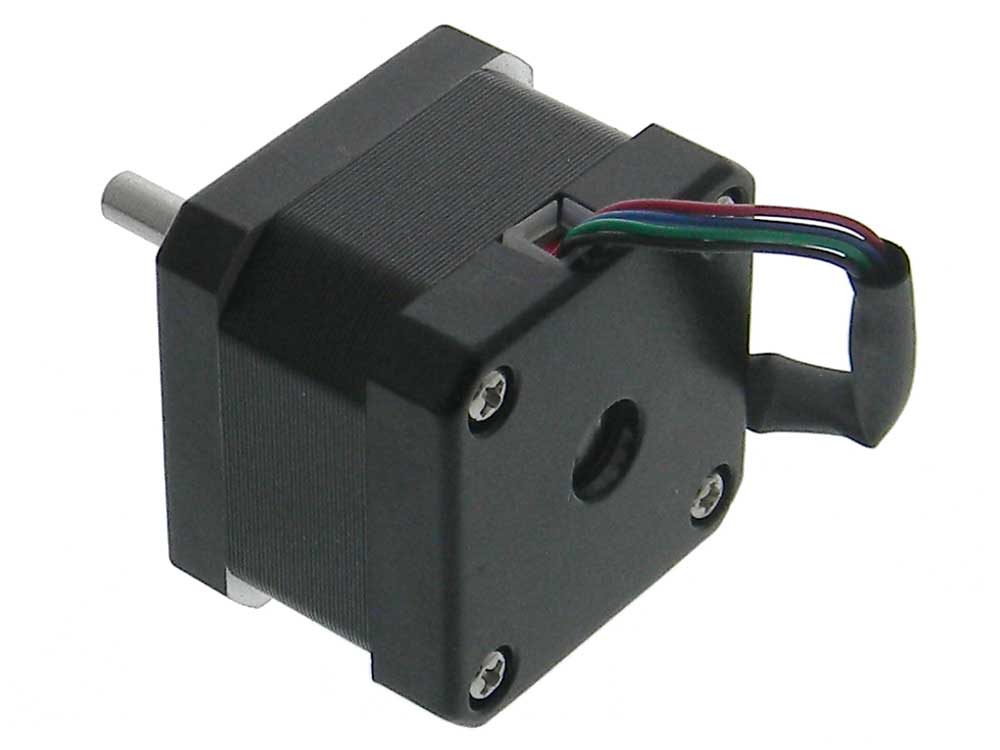

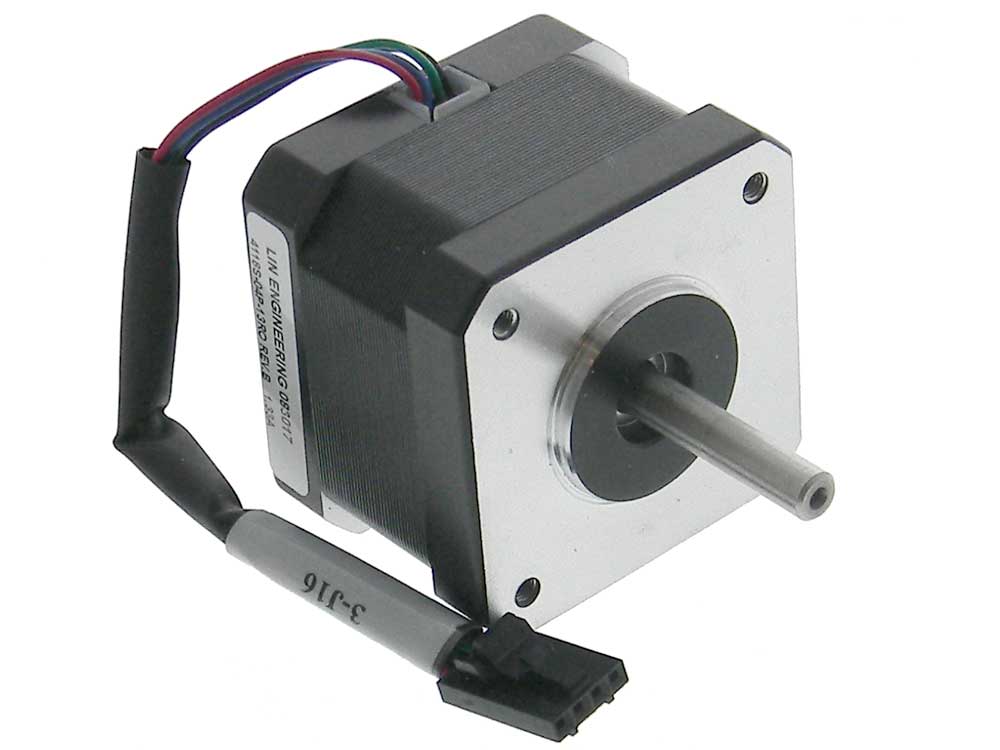

MFG: LIN P/N: 4118S-04P-13RO COIL: 1.33A/2.5Ohm TYPE: 2 Phase Bi-Polar 4 lead STEP ANGLE: 1.8 deg Holding Torque: 0.3Nm (42oz-in)
New Semi custom, single shaft, step motor, 5mm X 24mm steel Front shaft. 4 corner M3-0.5 mounting holes. ~4.2in. cable to Header connector (sorry no mate). L: 1-3/8" (Body) Sq: 1-5/8" WT: .5
