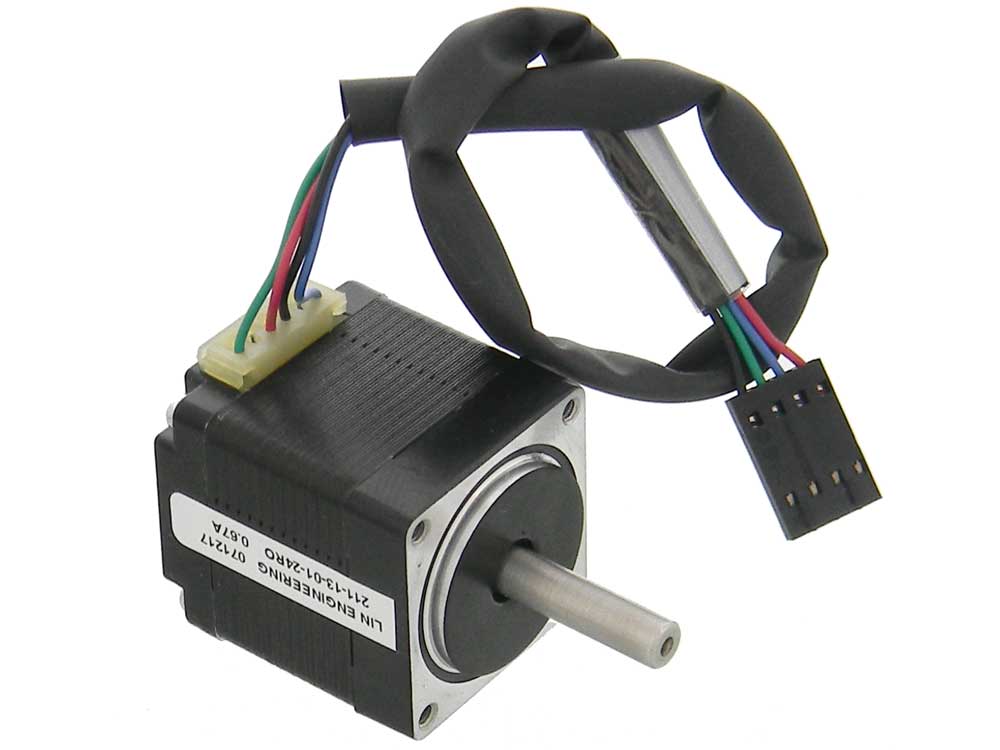

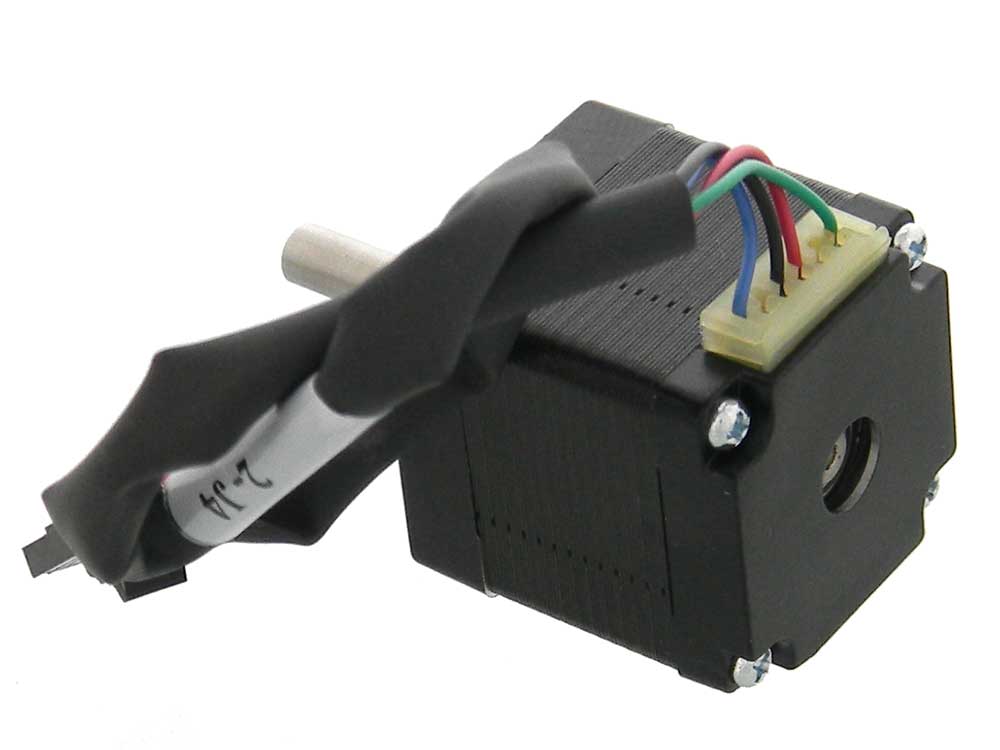

Stepmotor, 1.8deg. NEMA 11, 4 Lead - Single Shaft - 0.67A


Stepmotor, 1.8deg. NEMA 11, 4 Lead - Single Shaft - 0.67A
Stock Number: 36487 MS
  Be the first to review this item
$9.95
$5.95
This item is discontinued & is not being restocked.


Availibilty: In Stock   Units: 48
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


MFG: LIN
P/N: 211-13-01-24RO
COIL: 0.67A/5.6Ohm
TYPE: 2 Phase Bi-Polar 4 lead
STEP ANGLE: 1.8 deg
Holding Torque: 0.06 Nm (8.5 oz-in)
New Semi custom, single shaft, step motor, 5mm X 20mm steel Front shaft. 4 corner M2.5-.45 mounting holes. ~8in. cable to Header connector (sorry no mate).
L: 1-1/4" (Body) Sq: 1-1/16" WT: .3
