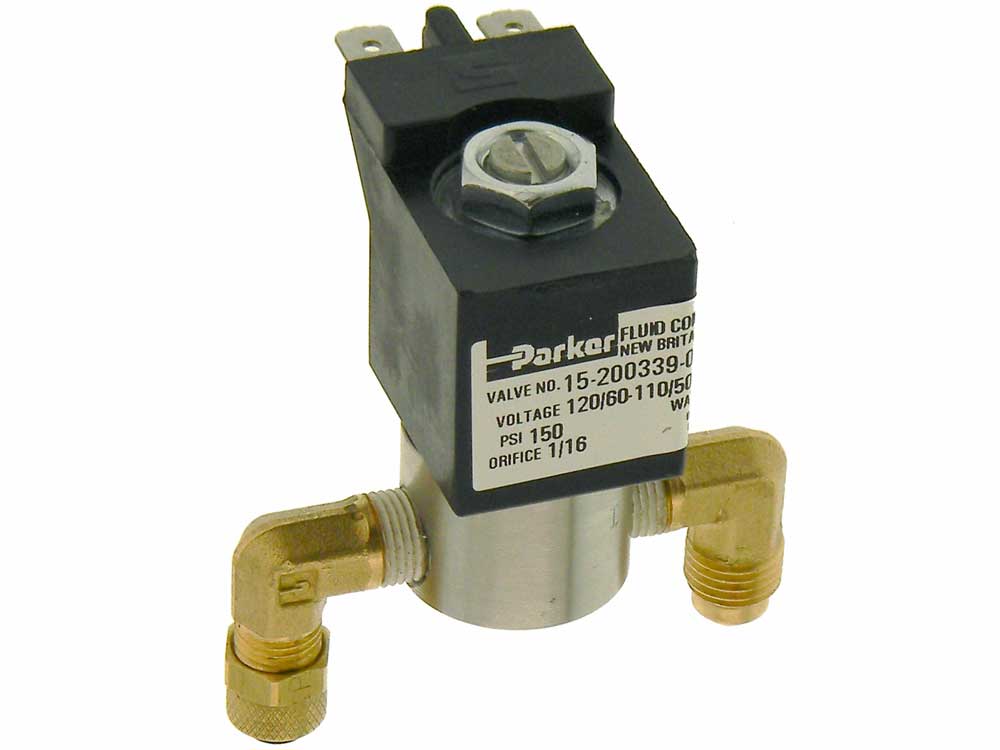

Custom Parker Fluid Control
P/N 3M1S1P3 (15-200339-002 "E")
Normally Closed solenoid Valve compatible with: Air, Water, inert gases etc.
Designed for use in a commercial coffee maker
UL/CSA/CE/ NSF listed
Coil: 120VAC 6W
Ports: 1/8 FPT (Female Pipe Thread)
Pressure: 150PSI Max
Body: 303 Stainless body
Terminals: .250 male Quick Connect
Mounting: 2X 8-32 threaded Holes in base
Includes removable port fittings:
IN: Brass Elbow 1/8 MPT to 1/4 Male Flare
OUT: Brass Elbow 1/8 MPT to 1/4 compression tube fitting HT: 2-7/8O/A W: 2-1/2O/A T: 2: WT: .5
