Solderless Breadboard, Arduino Compatible Shield


Solderless Breadboard, Arduino Compatible Shield
Stock Number: 32400 MP
 Review Average:
 Number of Reviews: 4
 View ReviewsReview this item
$4.95


Availibilty: In Stock   Units: 25
Quantity



SHARE

     Email this to a friend

Detailed Description

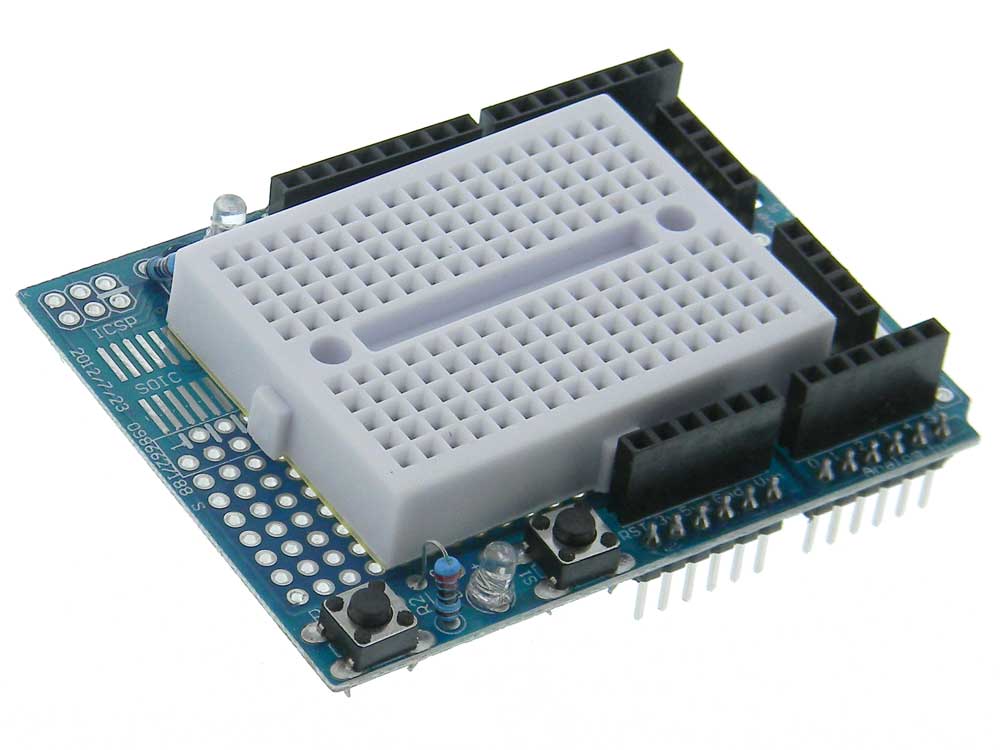

Arduino Solderless Breadboard
Prototype shield V-3.1 features:
0.1” pitch headers for direct connection to/from Arduino
0.1” pitch header sockets for stacking additional boards
Reset Switch & Test Switch
Power LED, Test LED
5V & Ground Busses
RS232 Com. Port
0.1Pitch Holes for a 1602LCD and a Nokia 5110 LCD
Peel & Stick breadboard with 170 tie points
L: 2-3/4” W: 2-1/8” H: 3/4” WT: .06


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Nice, but.....
I agree with a previous reviewer, nice board, but even better if a schematic was available.
- Steve L, NH

Nice breadboard, but...
Sturdy enough construction and I like that you can choose to use it with or without the small solderless breadboard. Be aware that the Upper D8 connector is only 8 pins long so the Uno-R3 SDA & SCL pins are not easily used. The SOIC pads are oddly broken out and mostly hidden if the solderless breadboard is stuck down. You cannot put a 28 pin socket on here without cutting some traces.
- R T, CO

Documentation?
This is a nice little module, but with no documentation on the catalog listing, I had hoped it would come with a schematic showing how the switches, LEDs, and dedicated pads are connected. Buzzing it out with an ohmmeter is tedious, and leaves me wondering what I might have missed.
- Bruce, MA

Nice breadboard
This is a very nice quality breadboard, and very convenient as a arduino shield.
