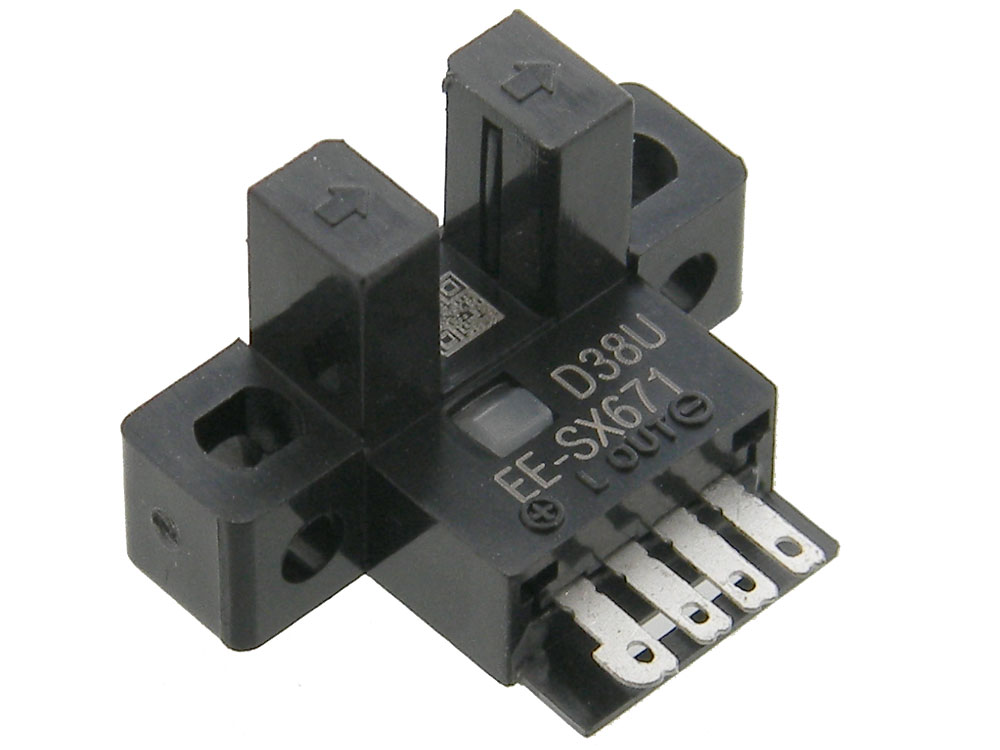

General purpose right angle optical switch with Open Collector NPN Output.
Can be connected for Dark (Blocked)-ON or Light (Pass)-ON operation.
Red LED Operation indicator.
Output Current Sink: 100mA Max
Slot width: 5mm
Slot depth: 9mm
Light Source: 940nm IR Led
Connections: 4 Solder Tail
L: Select Dark (Blocked)-ON or Light (Pass) ON
OUT: NPN Collector
-: Power Return L: 1" Body W: 1" T: 1/4" WT: .01
