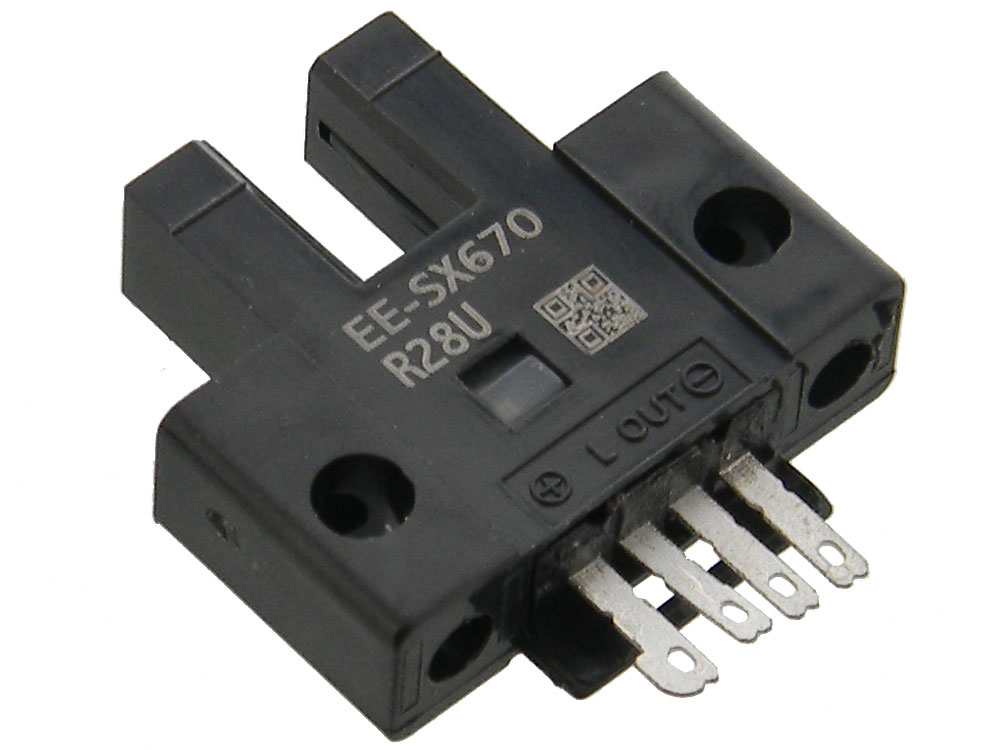

Slot-type Opto-interupter/Switch - NPN Current Sink

DATA SHEET

General purpose right angle optical switch with Open Collector NPN Output.
Can be connected for Dark (Blocked)-ON or Light (Pass)-ON operation.
Red LED Operation indicator.
Power: 5-24VDC
Current: 35mA
Output Current Sink: 100mA Max
Slot width: 5mm
Slot depth: 9mm
Light Source: 940nm IR Led
Connections: 4 Solder Tail
+: Power
L: Select Dark (Blocked)-ON or Light (Pass) ON
OUT: NPN Collector
-: Power Return
L: 3/4" Body W: 1" H: 3/4" WT: .01
