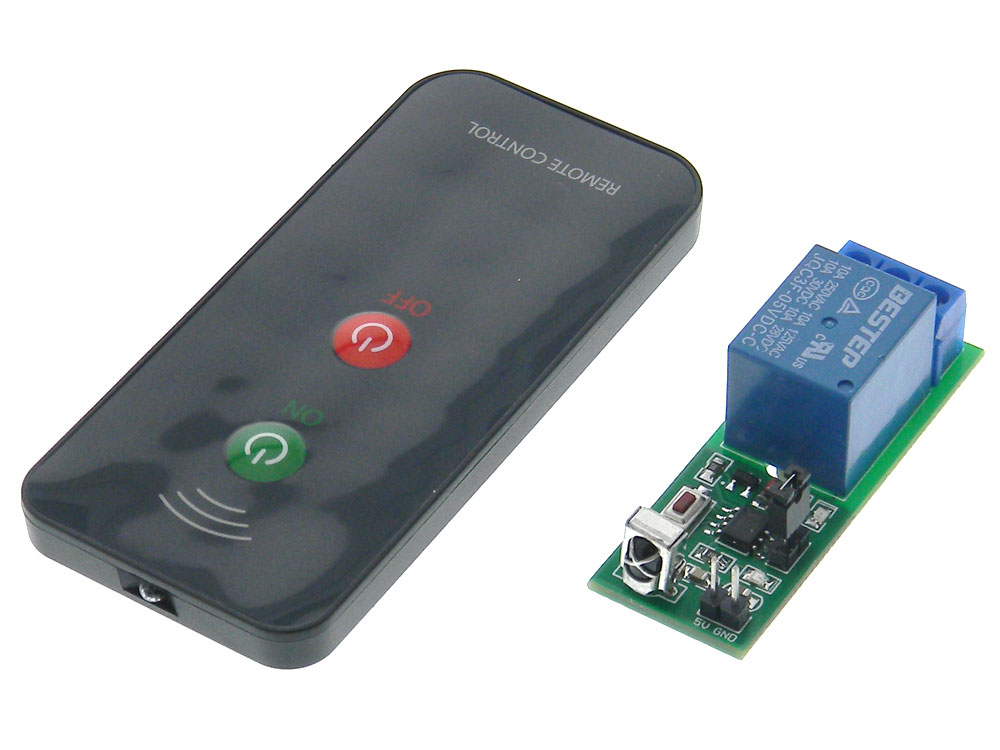

Single Channel I/R Remote Control Relay - 5V


Single Channel I/R Remote Control Relay - 5V
Stock Number: 36480 RL
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$5.95


Availibilty: In Stock   Units: 39
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Single channel remote control SPDT relay with isolated contacts.
Range: Line of Sight >10ft
5V Power
~40mA standby
~140mA Relay energized
NOTE: Relay Defaults to normal state of Common connected to NC contact when power removed
Selectable Momentary (Jumper ON)
or Alternate Action Push ON/Push OFF (Jumper OFF)
NOTE: You must program which button is used (Not Both) on Remote.
Press Push Button on Board & Hold until LED Flashes. Release and then press a button on remote.
Relay: SPDT
Contacts: 10A @ 125/250VAC/30VDC
Terminal Strip for Relay Contacts
0.1" Pitch Header for Power
Board:
L: 2-1/8" W: 3/4" H: 3/4"
Remote:
L:3-3/8" W: 1-1/2" T: 5/16"
WT: .06


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Not quite as described
While alternate action mode works as expected (toggles between relay coil on and off with each button push), the "momentary" mode is really a one-shot mode... pushing the button only energizes the coil for a fraction of a second, regardless of how long the button is held down, and there's no adjustment to stretch the ON time. This may not work for my application.
Bruce
