We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

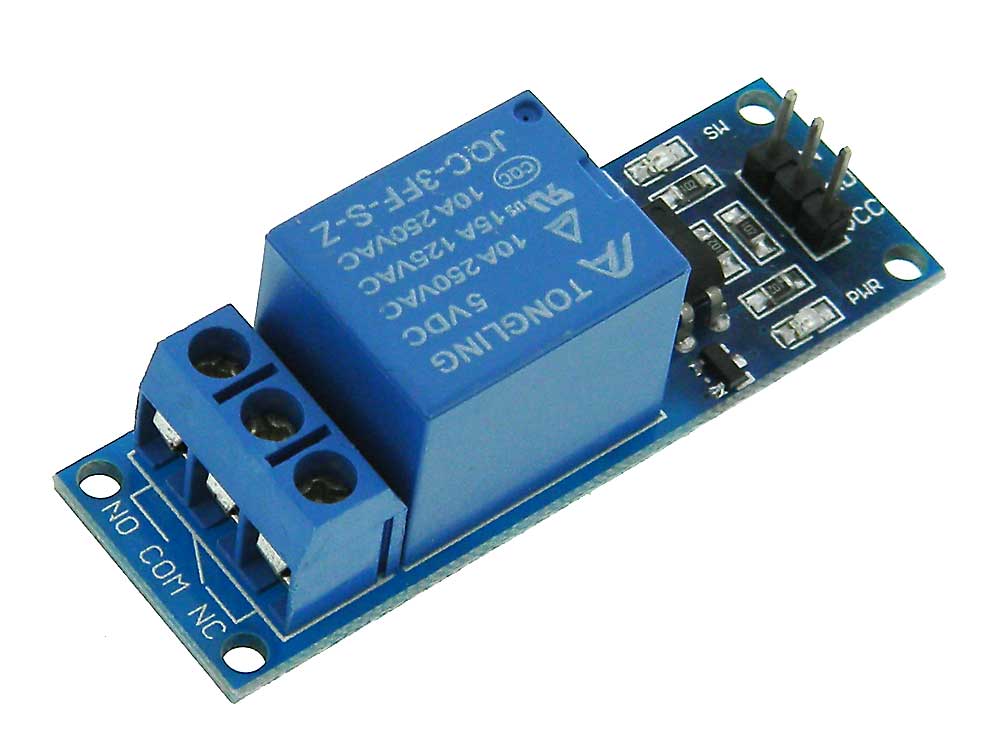

Single SPDT Relay module for any project. Easily driven by an Arduino or other micro controllers. Opto Isolated Input.
Freeware available through www.arduino.cc.en & others
Power & Relay Activated LEDs
+5V on Input to Actuate Relay
Power: 5VDC @ ~90mA energized
Contacts: SPDT 10A @ 28VDC,30VDC,125VAC,250VAC
Input: .1in. pitch header with Vcc, Gnd, and Input
Output: Terminal strip. L: 2-1 /16 W: 11/16 H: 3/4 WT: .04
