Action: SPST Contacts: 16A@120VAC Lamp: 120VAC (Neon)

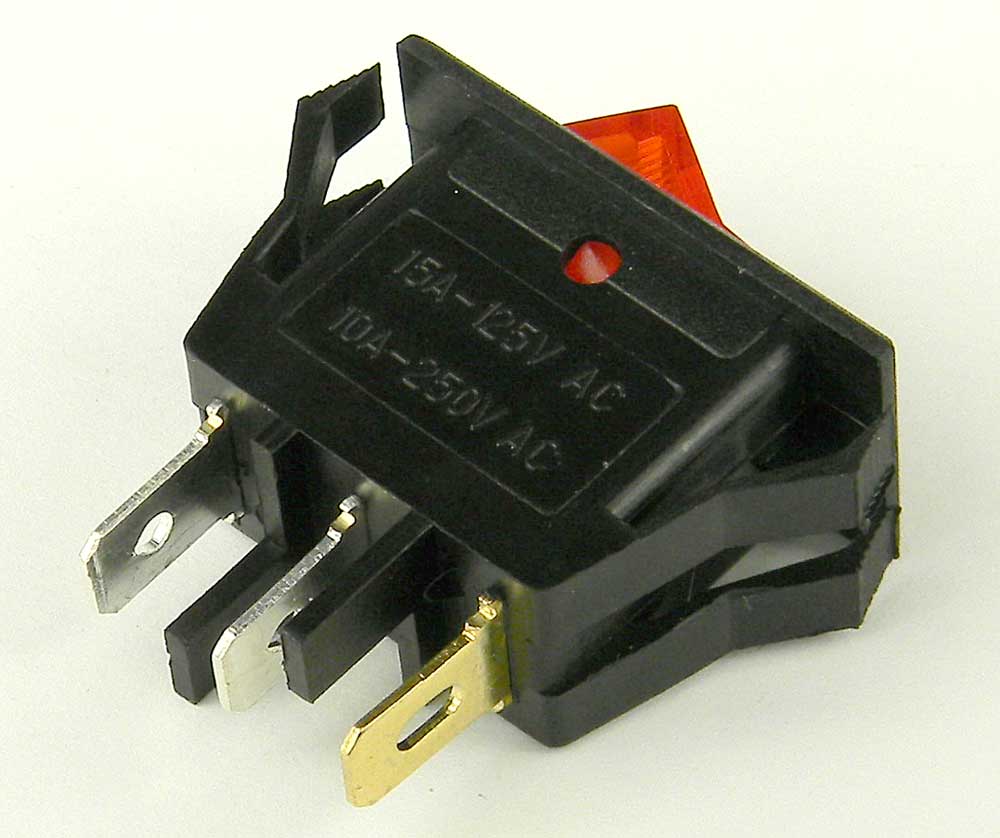

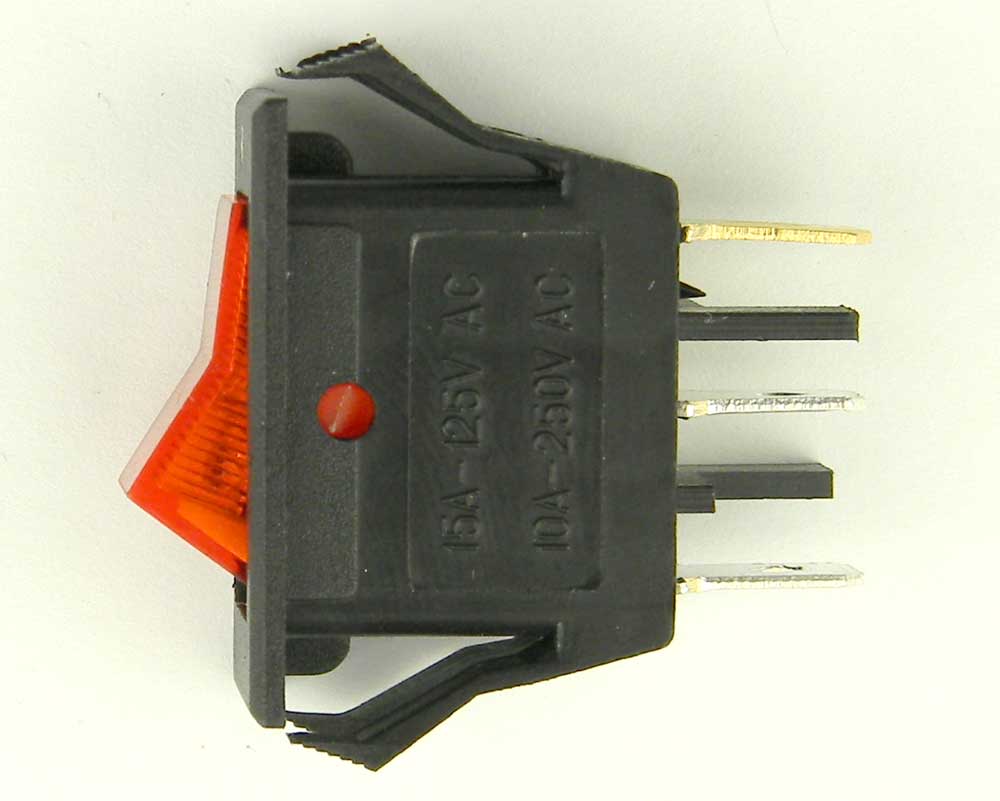

Lighted Snap-in panel mount rocker switch with .25in. Quick Connect terminals. Black Body, Red Rocker. Mounts in 13.25mm X 29mm cutout. One side of Lamp is connected to switch contact, other to 3rd terminal that has to be connected to neutral. L: 1-1/4in. W: 5/8in. Ht: 1-5/8in O/A WT: .05
