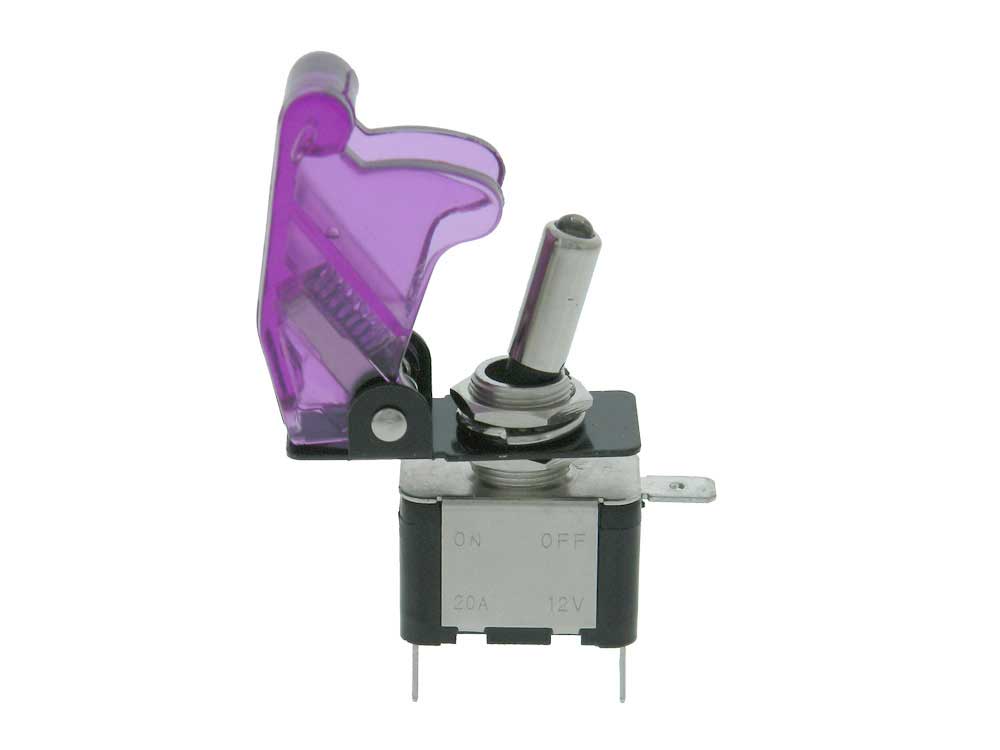

SPST 12VDC Automotive Safety Switch, White LED Purple Cover
SPST, Auto type full toggle with White LED iluminated toggle handle. Purple Safety Cover must be opened to activate switch.
LED only illuminated with the switch in the on position!!

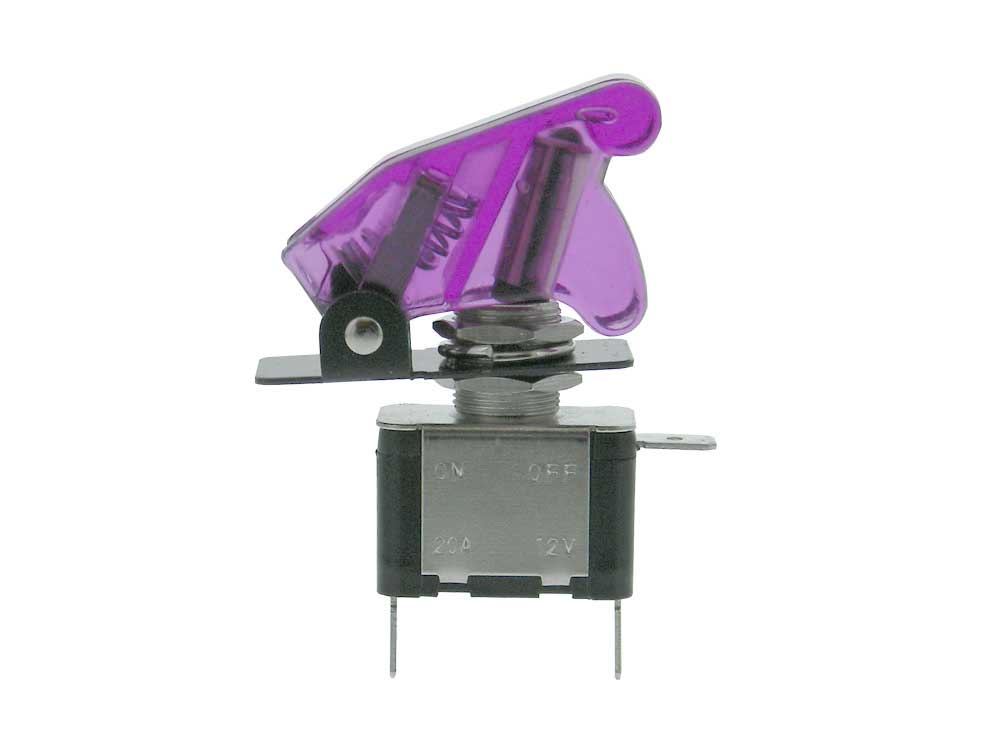

Closing cover forces switch to original position (OFF).
Rated: 20A@ 12VDC
This switch has 3 terminals:
+12V for input contact,
Ground for LED
Contact for Load output & LED.
Terminals: .250" Quick connect.
Mounts in 1/2" hole. WT: .08
