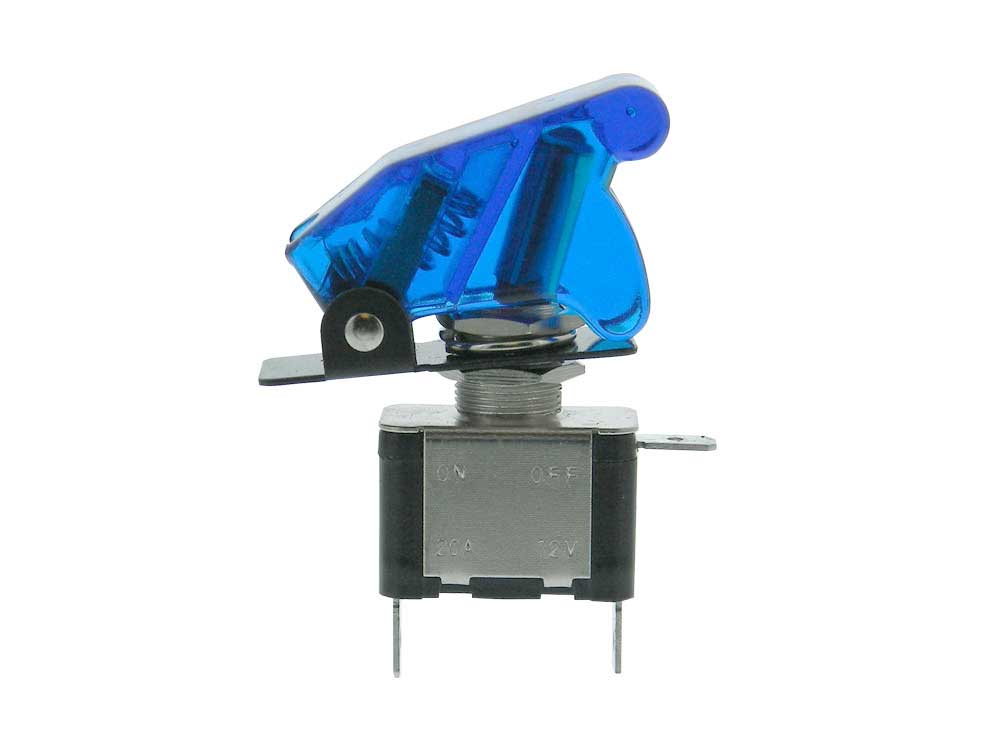

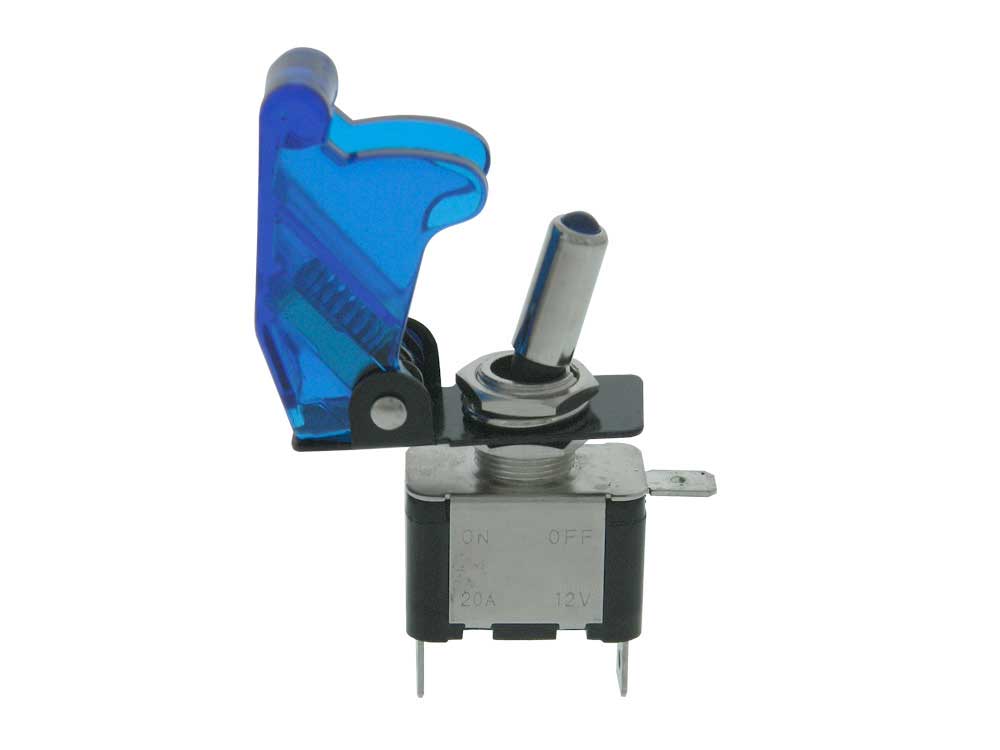

SPST 12VDC Automotive Safety Switch, LED Lighted Blue
SPST, Auto type full toggle with Blue LED iluminated toggle handle.
Blue Transparent Safety Cover must be opened to activate switch.
LED only illuminated with the switch in the on position!!
Closing cover forces switch to original position (OFF).
Rated: 20A@ 12VDC
This switch has 3 terminals:
+12V for input contact,
Ground for LED
Contact for Load output & LED.
Terminals: .250" Quick connect.
Mounts in 1/2" hole. WT: .08
