SPECIAL Protoboard Special 5 Breadboards + 5 Protoboards


SPECIAL Protoboard Special 5 Breadboards + 5 Protoboards
Images/33353-large.jpg   California Proposition 65 Warning
Stock Number: 33353 MI
 Review Average:
 Number of Reviews: 2
 View Reviews | Review this item
$6.95


Availibilty: In Stock   Units: 28
Quantity



SHARE

     Email this to a friend

Detailed Description

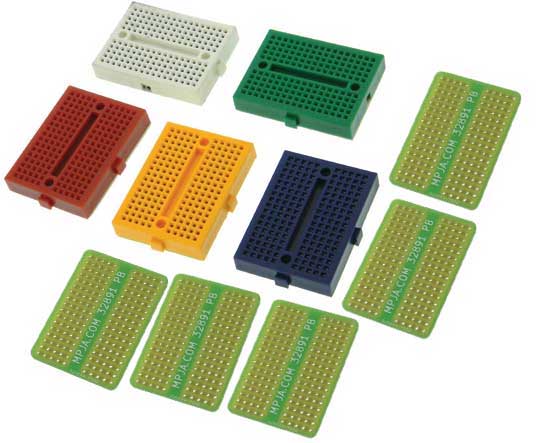

SPECIAL 5 pc. set of 170 tie point solderless breadboards with 5 Protoboards with matching pattern.
Breadboards: 1ea. Red, Blue, Green, Yellow & White breadboards with ABS plastic body. Nickel plated contacts Rated 2A Max. Contact resistance less than 1 milliohm @ 1kHz. Suitable for 19-29 AWG wire and all DIP size components.
Interlocking edges for combining multiple boards.
L:1.9in. W: 1.4in. H: .37
Protoboards: Single Sided .062” FR-4 board
Holds DIP IC (s) with up to 30 leads (2X15) DIP ICs with .1” lead pitch & .3” Package pitch. Each DIP lead has 5 pads bussed together. 170 total holes.
L: 1-5/8” (41mm) W: 1-5/16” (34mm)
WT: .15

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Great Idea!
Work on your bead board and tweek the circuit then solder to the matching perfboard.
- Dave S, GA

I need to look closer
I thought they were larger. Duh
- Larry Cardo, OH
