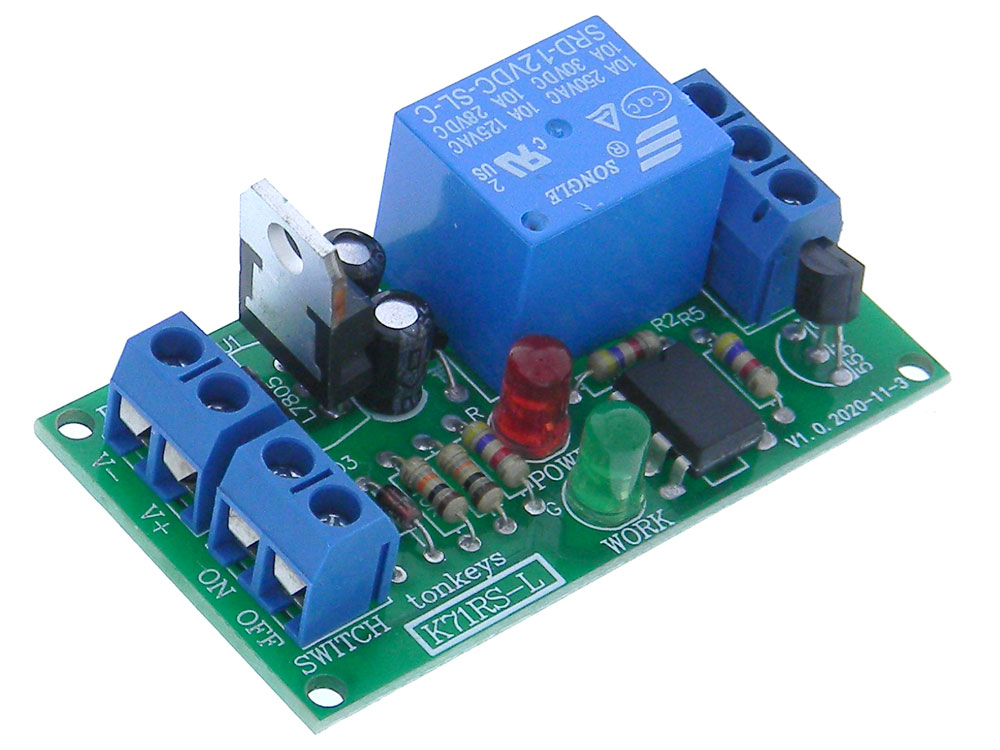

SPDT Power Control Relay Module 12V , Low Signal Control


SPDT Power Control Relay Module 12V , Low Signal Control
Stock Number: 37765 RL
  Be the first to review this item
$7.95


Availibilty: In Stock   Units: 43
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Simple ON/OFF Power Control Module.
One Switch Turns Load ON, Other Switch Turns Load OFF.
Note: Switch contacts should be Momentary. Does not change motor direction.
Once triggered Relay will stay in that state until other switch is activated.
Always OFF when Power Applied.
Power: 12VDC
Trigger: Low level (Contact Closer to Power Minus -)
Relay: SPDT
Contacts: 10A 250/125VAC/28VDC
Connections: Terminal Strips
LEDs for Power & Relay Energized.
L: 2-1/4" W: 1-1/4" H: 7/8" WT: .06
