SPDT Micro Reed Switch With Formed Leads


SPDT Micro Reed Switch With Formed Leads
Stock Number: 38513 SW
  Be the first to review this item
$1.45


Availibilty: In Stock   Units: 46
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

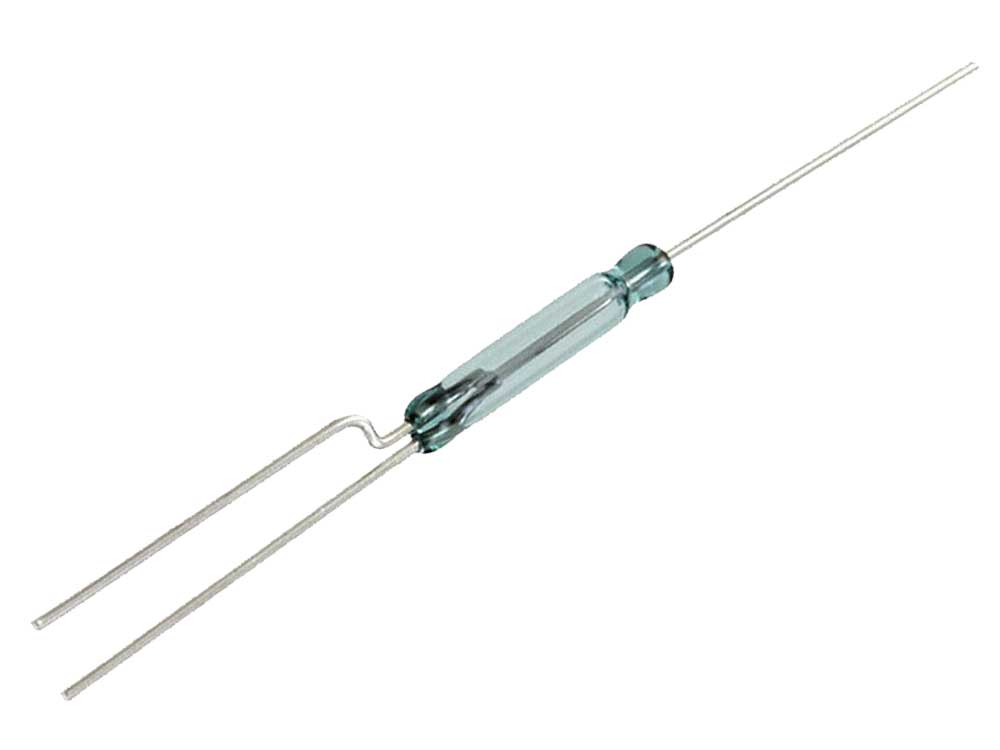

SPDT (Form C) reed switch. Mini size, sealed, glass case, with formed leads.
Pull-In: 15-30AT (Ampere Turns )
Contacts Rated:
Resistance: <100mW
Power: 5VA/W max
Max Switching Voltage: 175V
Current: Carry: 1.5A DC/AC
Switching: 0,25A
Leads: Tin Plated Ni/Fe
Body: 14.7mm (0.5”) X 2.5mm (0.1”)
L: 52mm (2”) O/A DIA: 2.5mm (0.1”) WT: .001
