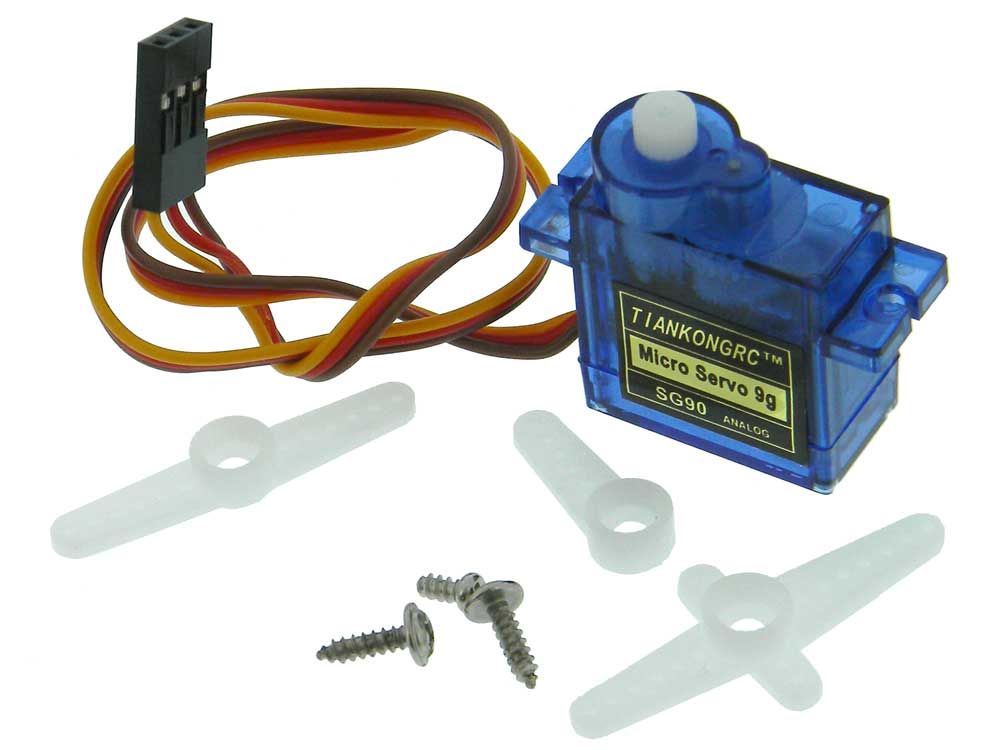

SG90 Servo Motor


SG90 Servo Motor
Stock Number: 31002 MD
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item
$5.95


Availibilty: In Stock   Units: 86
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Mini servo for robotics & modeling. Nylon gears for smooth quite operation. Rated: Op. Voltage 3.5-6VDC,
Stall Torque: 1.2kg/cm @ 4.8V, 1.6kg/cm @ 6V, Speed: 300Deg./Sec (60/.12sec.),
Dead Bandwidth: 5us.
Pulse Cycle: 20mS
Center@1.5mS
-90deg @ 1mS
+90deg @ 2mS
Futaba/JR connector (0.1Pitch) on 9in. cable.
Red: Vcc
Brown: Ground
Yellow: PWM
L: 23mm W: 12mm O/A T: 29mm WT: .02



California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Great price compared to other places 5/5/2015
You see these everywhere but the best price seem to be here. I bought a ton of these to build generic Boe Bots using arduino. They work well, not too tough but they get the job done. The wheels are a little hard and out-of-round, but otherwise quite happy.
Rick Jensen

Very small and compact 5/5/2015
All of them worked. Im using them to control focus and zoom on the $20 video cameras they sell. They are small enough for the video enclosure.
- Rick Jensen, FL
