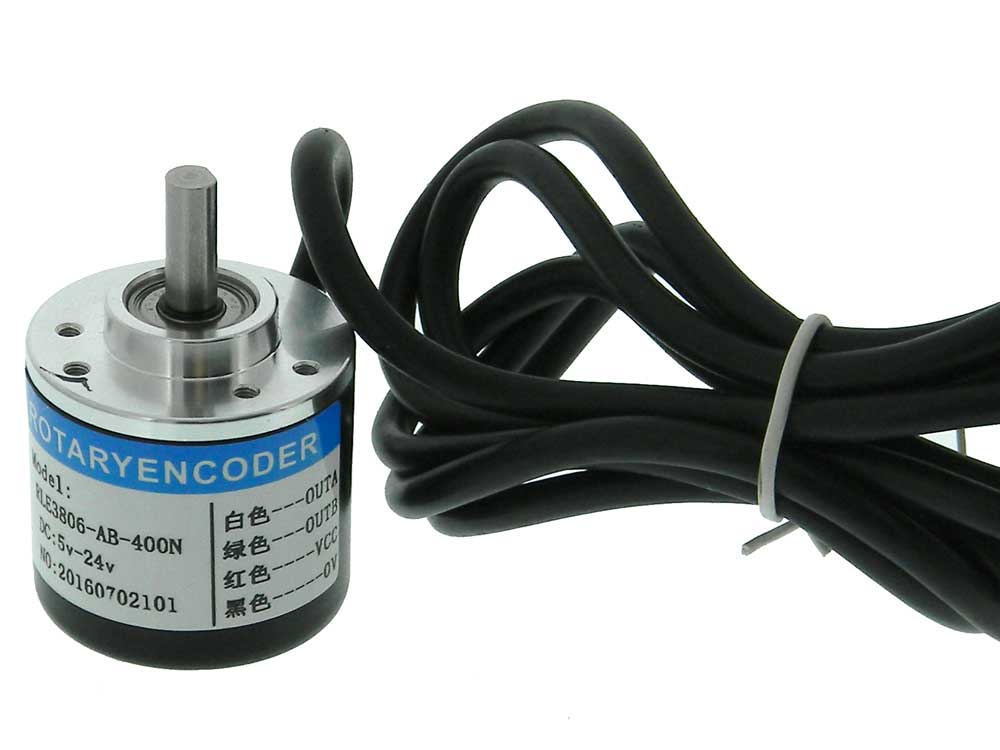

Rotary Encoder, Biphase, 400PPR

Rotary Encoder, Biphase, 400PPR

33107-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 33107 MI
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item

Availibilty: In Stock   Units: 22

Email this to a friend

 Detailed Description
Encoder for CNC Machines, Microcontrollers
400PPR Bi-phase rotary encoder provides a 2 Phase output for detecting speed & direction.
Power: 6V-24VDC @ <100mA
Output: NPN Open Collector (Requires Pull-up Resistor)
30mA Sink
Waveform: 2 phase rectanglar orthogonal pulse
Resolution: 0.9deg. (400Pulse/360deg. rotation)
Phasing: A before B or B before A (rotation dependent)
Speed: < 1000 RPM
Shaft: 6mm Dia. X 16mm
Mounting: Front/ M3-.5 threaded holes
3 on 28mm Dia @ 120deg & 3 on 30mm @ 120deg. Connections: 2m Cable
DIA: 38mm (Body) L: 40mm (Body) WT: .4

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)

 Product ReviewsClick here to review this item
Verified Purchase
Well packed, shipped quickly. A+
Verified Purchase
As described, no surprises.
