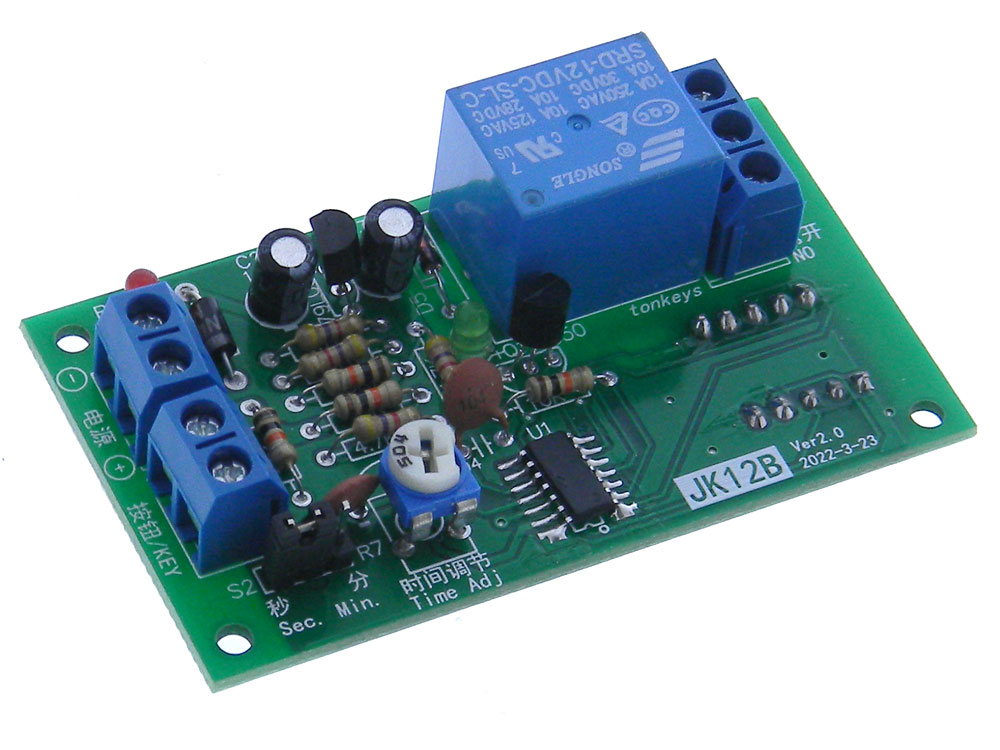

Retriggerable - Delay on Make Timing Relay - 12VDC


Retriggerable - Delay on Make Timing Relay - 12VDC
Stock Number: 37673 RL
  Be the first to review this item
$4.95


Availibilty: In Stock   Units: 41
Quantity



SHARE

     Email this to a friend

Detailed Description



View PDF Data Sheet
DATA SHEET

Trigger actuated Time Delay Relay.
Action: Relay OFF at Power ON, Time Delay starts at Trigger, Relay Energized AFTER Delay and stays
ON until next Trigger.
Retrigger durning Timing Cycle Restarts Delay
POWER: 12VDC
Timing Range: ~0-99 Sec OR
~0-99Min (Jumper Select)

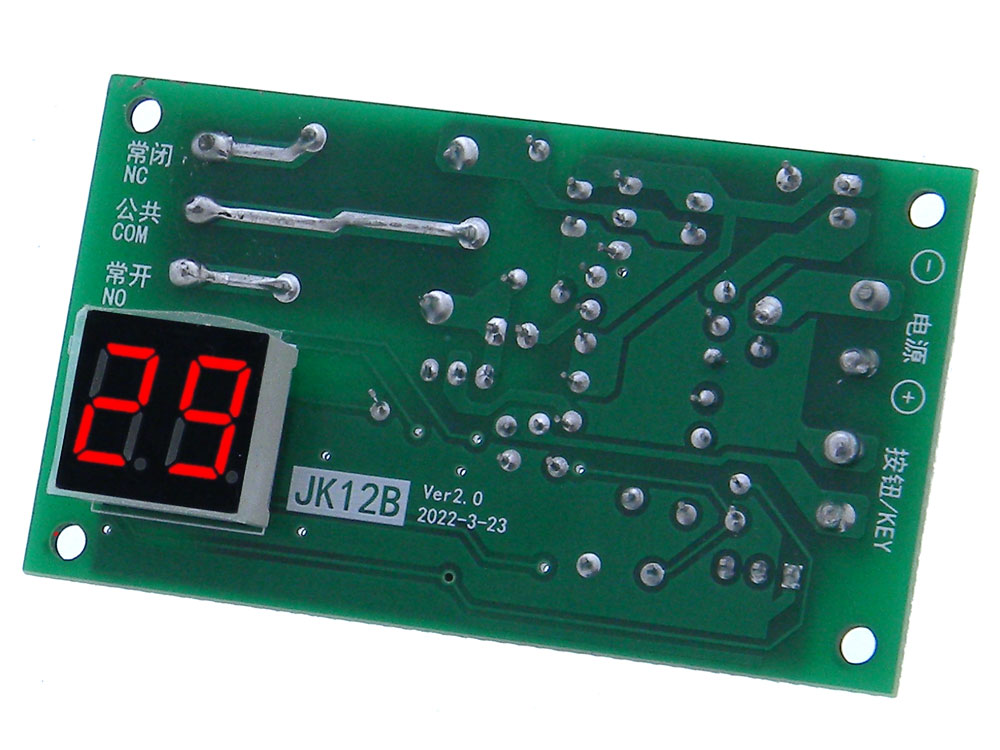

2 Digit, .36" LED Countdown Display on Back.of board for easy Panel Mounting.
Power LED
Relay Energized LED
Relay:
Contacts: SPDT 10A @ 125/250VAC/30VDC
Connections: Terminal Strips
L: 70mm (2-3/4") W: 40mm (1-9/16") H: 20mm (7/8") WT: .06
