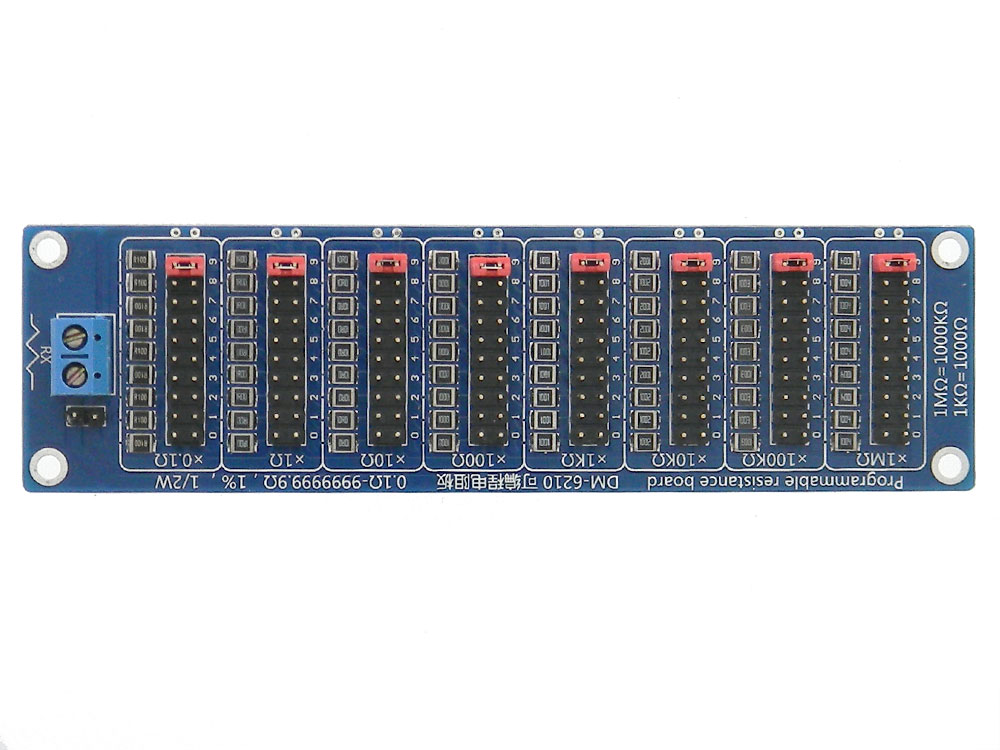

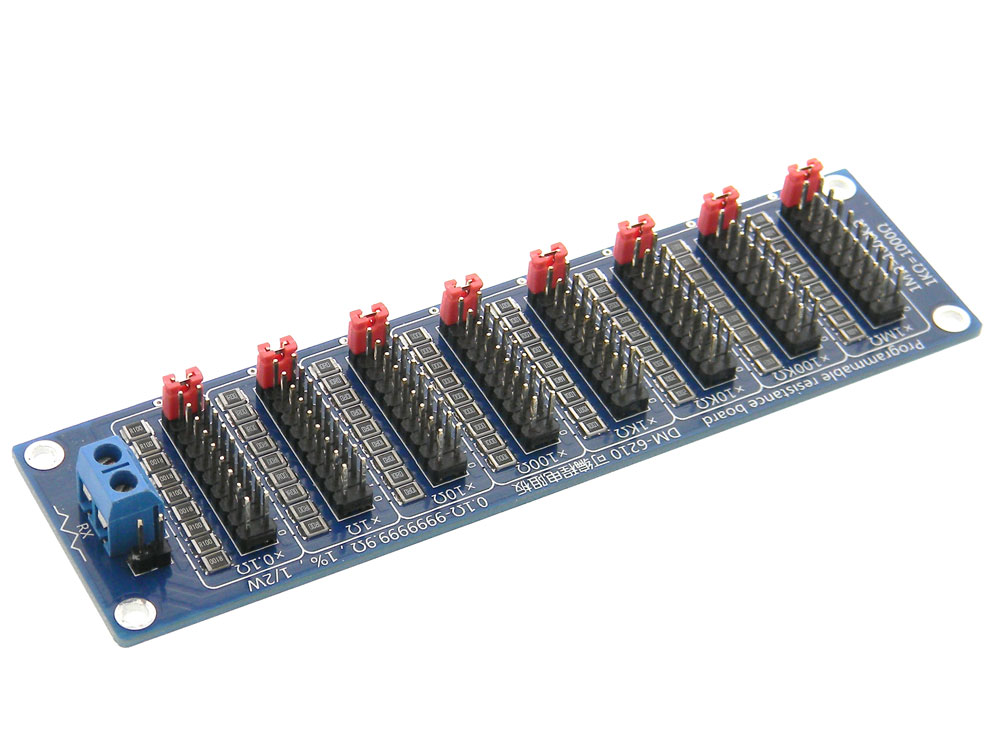

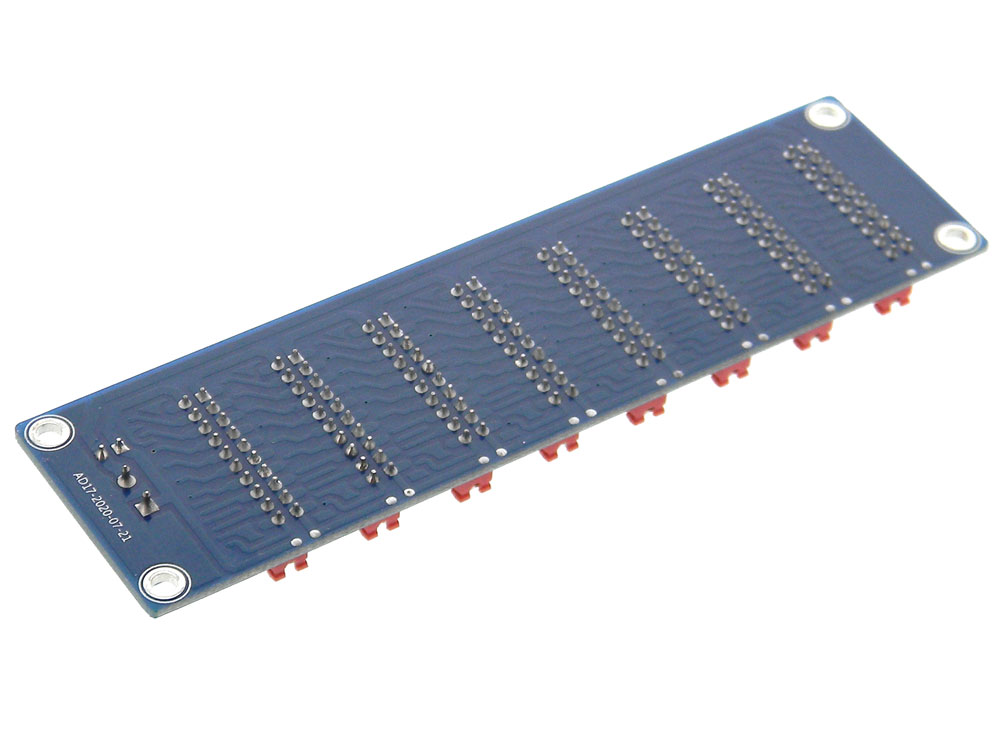

Resistor substitution board for quick set of a resistor value.
Jumper select from 0.1 Ohm to 9,999,999.9 Ohms in 8 decades
Resolution: 0.1 Ohm
Power: 1/2 watt
Tolerance: +/-1% SMD resistors.
FR4 PC Board.
Max. Working Voltage: 200V.
Connection: 2 Pin, 0.1 pitch header & Terminal Strip L: 5" W: 1-3/8" H: 5/8" WT: .07
