Remote Controled Relay, Wireless 4 Channel - 12V

Remote Controled Relay,  Wireless 4 Channel - 12V
Stock Number: 36825 MI
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item

Availibilty: In Stock   Units: 52

     Email this to a friend

Detailed Description

View PDF Data Sheet

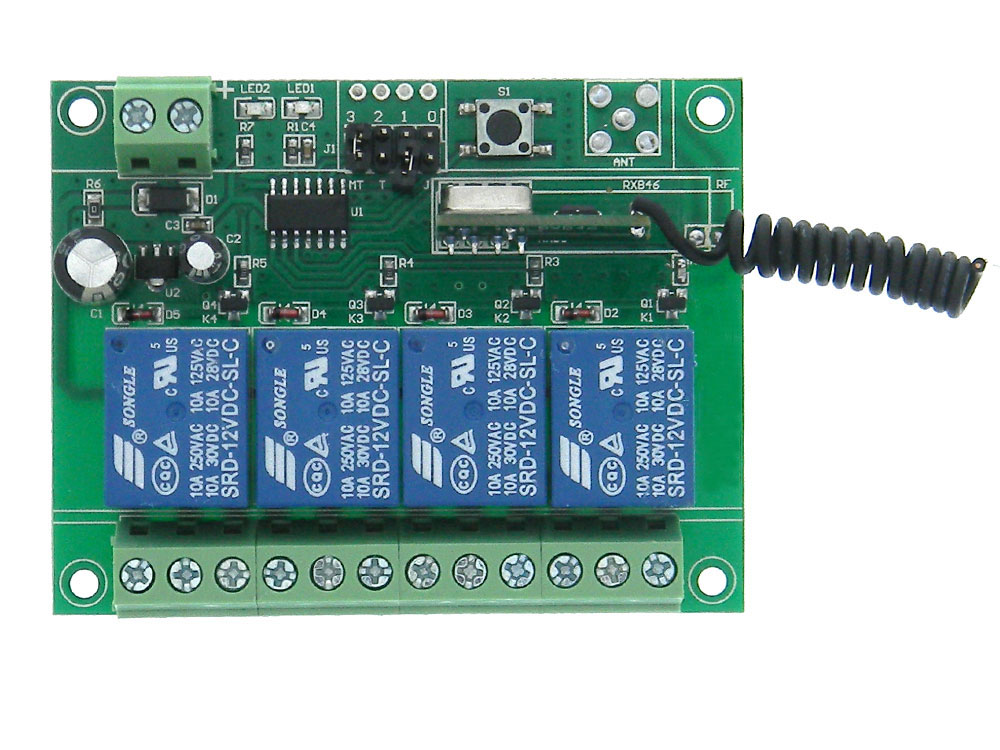

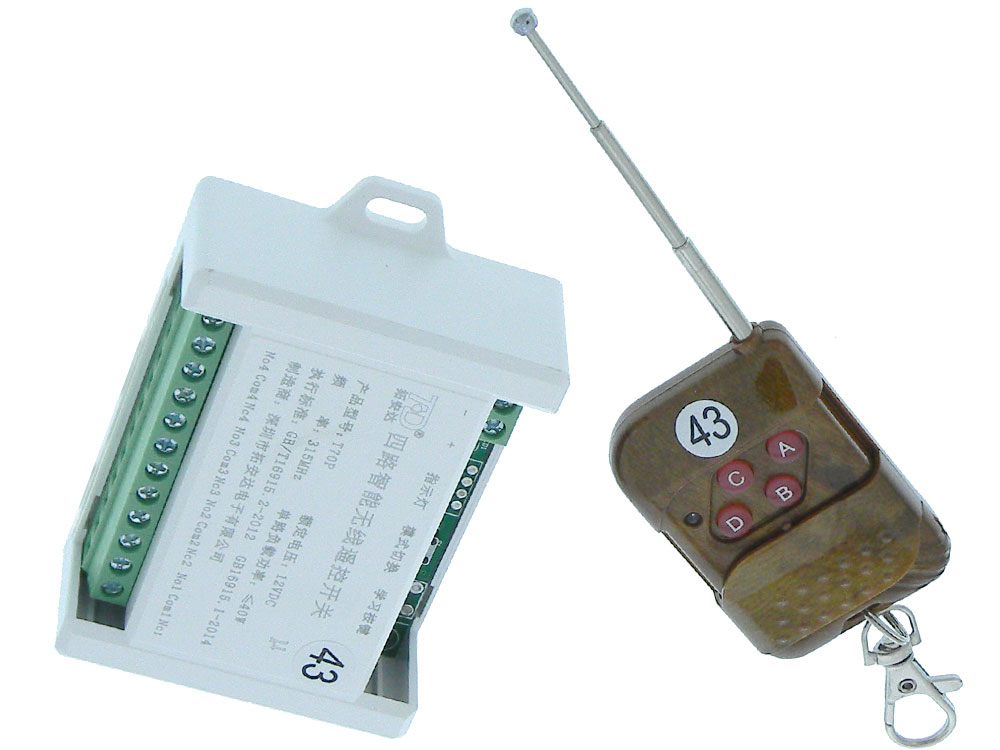

Complete 4 channel remote control. Includes a 4 button Key FOB and a microprocessor based Receiver.
Frequency: 315MHz
Range: >30M Depending on Enviroment & Location
Power: Key FOB: 12V Type 23A Battery
Receiver: 12VDC @ ~10mA standby
Relay: 4X SPDT
Contacts: Isolated 10A @ 250VAC/30VDC
Max Load: 40W/Relay
8 Modes: Jumper Select SEE DATA
1: Momentary Operation as long as Button Pressed
2: (Toggle) Alternate Action Push “ON” Push “OFF”
3: Interlocked 1 Relay energized at a time.
4: 2 Relays Toggle & 2 Relays Momentary
5: 2 Relays Momentary & 2 Relays Interlocked
6: 2 Relays Toggle & 2 Relays Interlocked
7: 1 Relay 1 ToggleAction & 3 Relays Momentary
8: Momentary Action Mode With 5 sec. Delay
Terminals: Screw Terminal Strips for Power & Relay Contacts.
Replacement/Additional Key FOB Available:
Stock # 38249-MI
FOB: H: 2-1/2” W: 1-1/2” T: 5/16”
RCV: H: 2-1/2” W: 3-1/8” + Tabs T:1-1/8”

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to

 Product ReviewsClick here to review this item
Unit can learn to work with more than one remote
I ordered two of these. Each one comes with its own remote, and each remote operates only its own relay box. However, if switch S1 on the relay box is pressed, it will add the code of the next compatible remote to be used, to its memory. This means that one or both relay boxes can be set to work with both remotes. To make the relay box forget all remotes, hold switch S1 down for 10 sec., until the blue LED starts blinking. Current consumption with all four relays energized is about 150mA. The remote has a telescoping antenna, however I found it works well without needing to pull it out. My only complaint is about the type 23A 12V remote battery. It is hard to find, and it is also difficult to insert it in the remote battery holder. The remote does work with a battery supply as low as 2.9V, though I did not check for range.
- H.Bustani, NV
