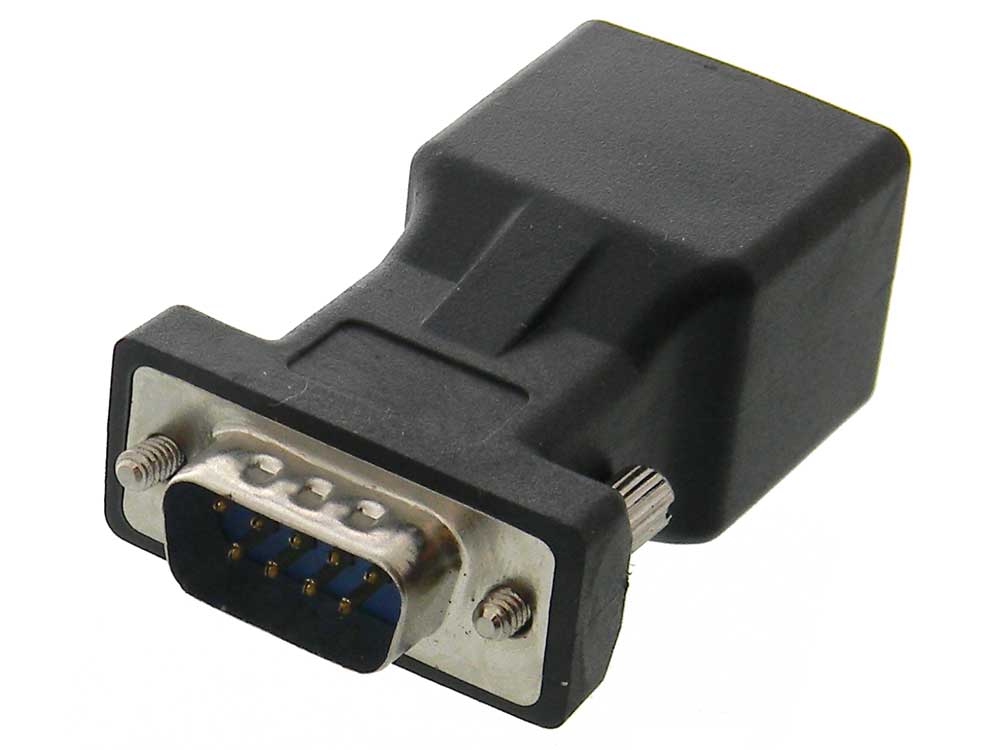

RJ-45 Jack to 9-pin DB-9 Male RS232 Serial Port Adapter

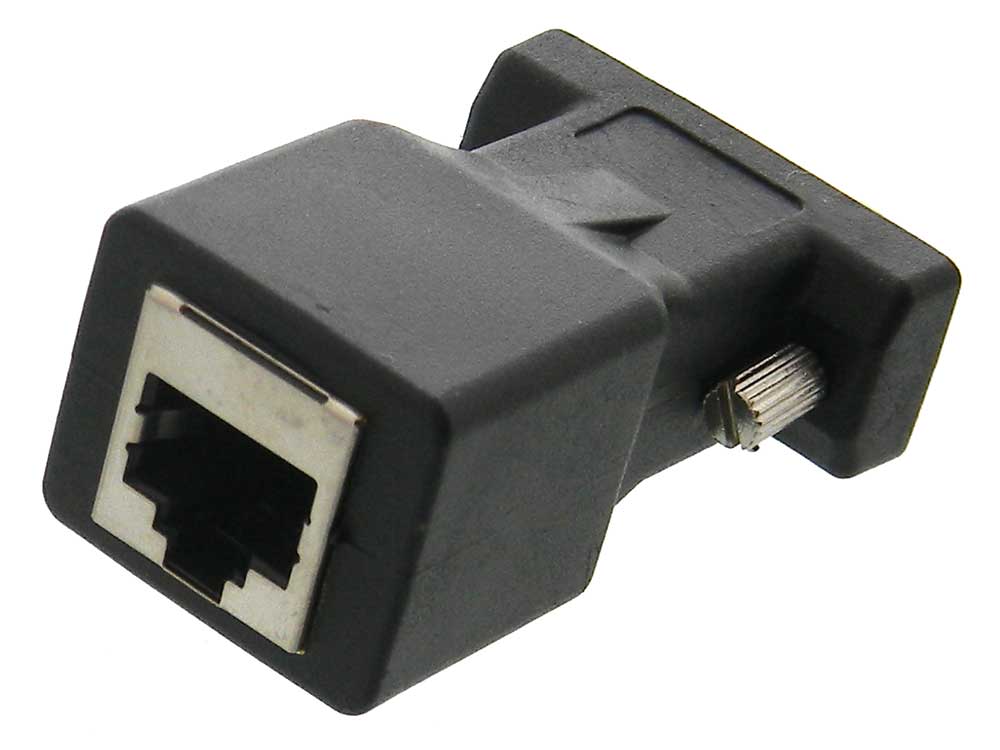

DB-9 Plug (Male) to a RJ45 Jack serial port adapter.
NOTE: There are several applications where 2 are needed (1 for each end) for direct Feedthrough (Cable extension)
Ues CAT 5 or CAT 6 Network cable for runs up to 20M
Check your application wiring
DB-9 Pin 1 > RJ-45 Pin 8 (Brown)
DB-9 Pin 2 > RJ-45 Pin 2 (Orange)
DB-9 Pin 3 > RJ-45 Pin 1 (White/Orange)
DB-9 Pin 4 > RJ-45 Pin 7 (White/Brown)
DB-9 Pin 5 > RJ-45 Pin 6 (Green)
DB-9 Pin 6 > RJ-45 Pin 5 (White/Blue)
DB-9 Pin 7 > RJ-45 Pin 3 (White/Green)
DB-9 Pin 8 > RJ-45 Pin 4 (Blue)
DB-9 Pin 9 > Not Connected L: 2-1/4" W: 1-3/8" T: 7/8" WT: .08
