RFID kit for Arduino microcontrollers.

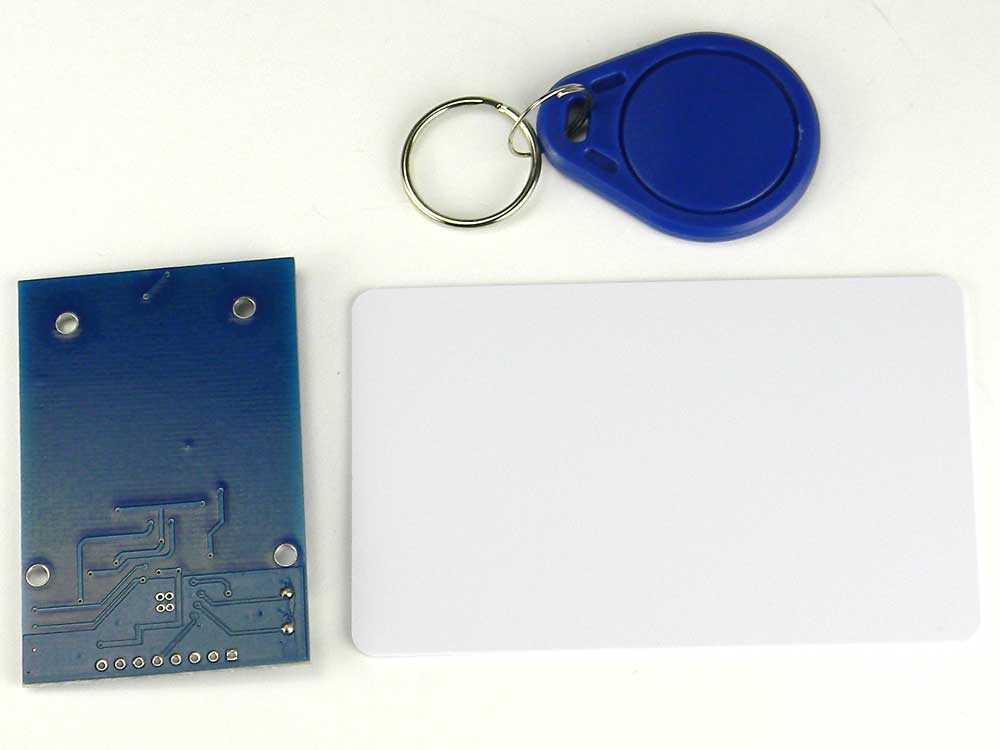

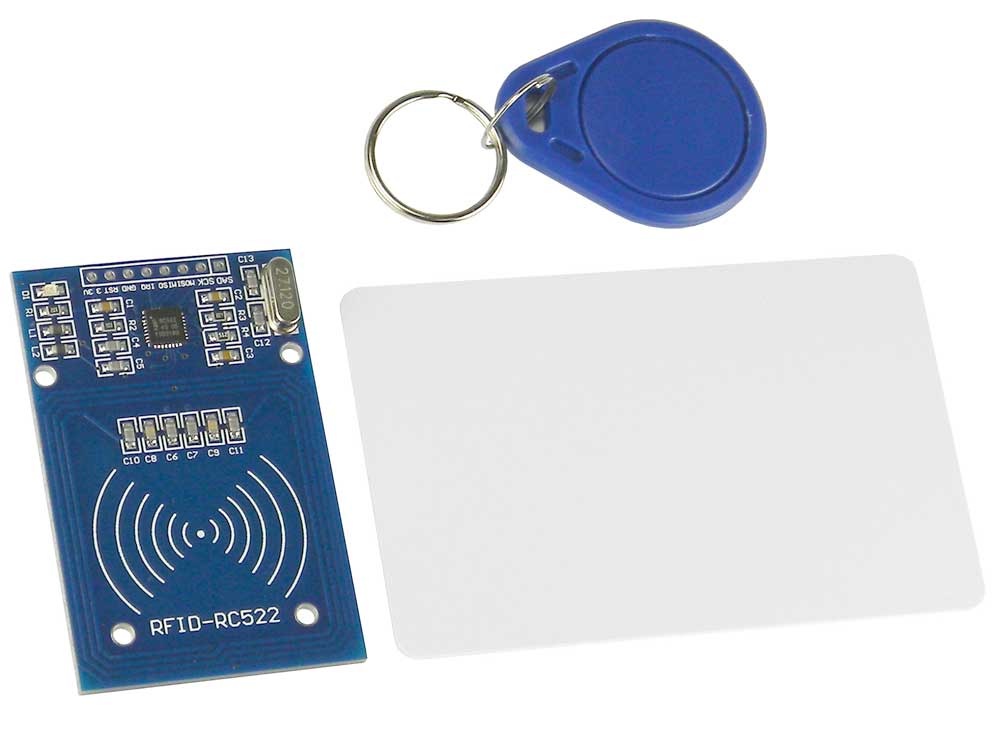

MIFARE RFID Reader/Writer set up that includes a MF522 reader Board, a S50 Plastic Card and a small KeyFOB.
Supports ISO14443A Transponder protocols and CRYPTO01 encryption algorithm. Open source software available at www.arduino. com and several other sites. Module: Based on the MFRC522 IC
Power: 3.3V @ 26mA Active ,<80uA Sleep mode
Read/Write Time: <2mS
Data Transfer Read/Write: 424kbs
Interface: SPI Module includes straight & right Angle Headers that you have to solder.
Size: 60L X 40W X 6mm Without header Card: NFC Smart Card/Tag MIFARE S50, Blank card.
Memory: 1K EEPROM (768Available)
Comm. Speed: 106 Kbaud
# of Writes: 100K
Size: 86 X 55 X .9mm
Compatible With most NFC supporting Android Devices. Keyfob: NFC MIFARE 1K ISO 14443A
# of Writes: 100K
Waterproof ABS Case
Size:32W X 40L X 4mm WT: .06
Additional Media Cards: Order #: 31112 MP
