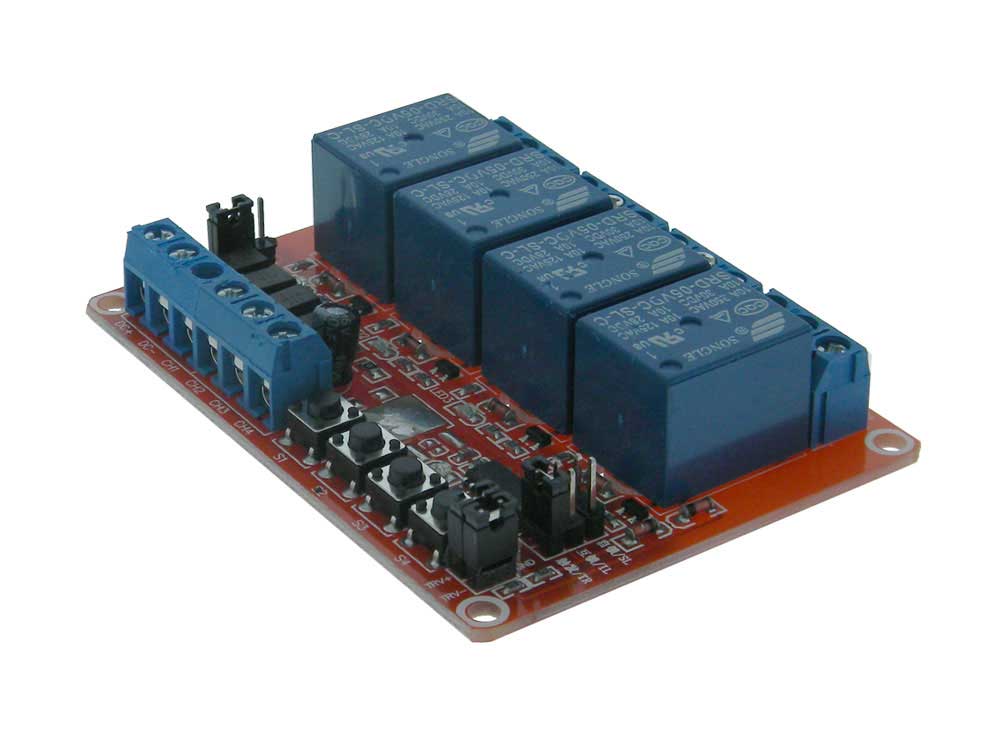

Quad Smart Relay Module 5VDC

DATA SHEET

Microprocessor controlled Quad Relay Module with isolated SPDT contacts
Opto-Isolated signal Inputs
Dual Trigger methods: On-board P/B switches
or Terminal Strip Inputs
Power: 5VDC (See Below)
Trigger Levels: Low: <2.5V High > 3.5V
Jumper select Internal/external trigger supply
Jumper select HI/LOW Trigger
(On board P/B Switches only operate in the "LO" setting)
3 Jumper programmable modes:
1: Latching: Stays on until next signal
2: Trigger: Stays on as long as a signal present
3: Interlocked: relays cannot be on at the same time
(Next triggered relay releases previous energized relay)
RELAY:
Coil: 5VDC
Contacts: SPDT
Rated: 10A @ 250VAC/30VDC
Terminal Strips for Relay contacts, Power & control
0.1" Pitch headers for selections
L: 3" W: 2-1/4" HT: 3/4" WT: .2
