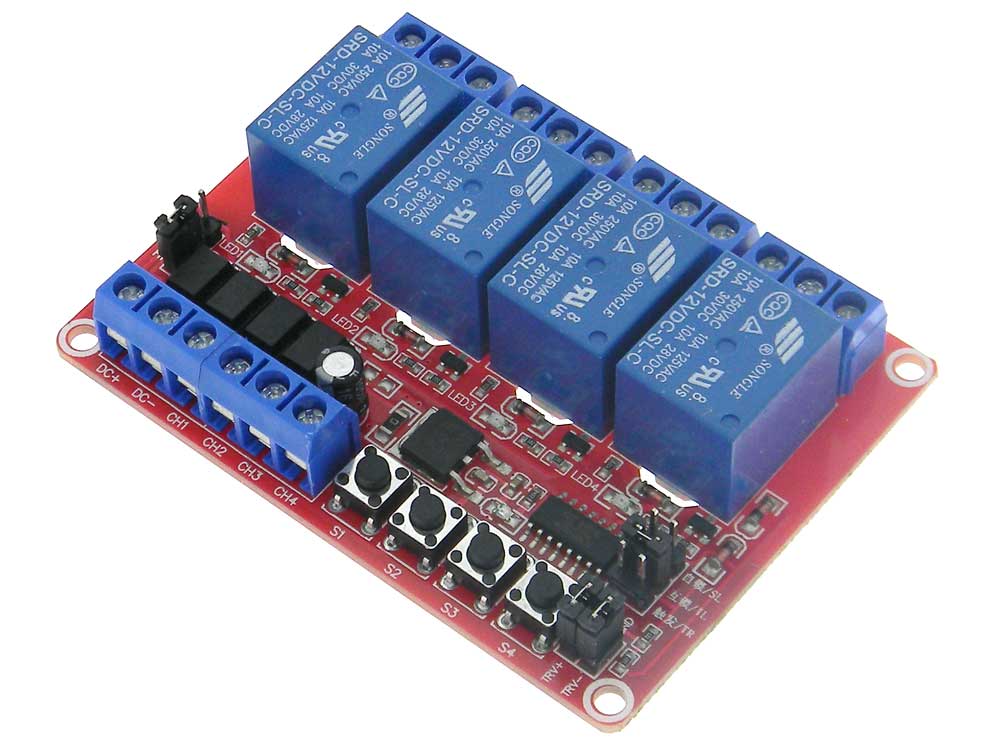

Quad Smart Relay Module 12VDC

Quad Smart Relay Module 12VDC

35072-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 35072 RL
Be the first to review this item

Availibilty: In Stock   Units: 28

Email this to a friend

 Detailed Description
View PDF Data Sheet

Microprocessor controlled Quad Relay Module with isolated SPDT contacts
Opto-Isolated signal Inputs
Dual Trigger methods: On-board P/B switches
or Terminal Strip Inputs
Power: 12VDC (See Below)
Trigger Levels: Low: <2.5V High > 3.5V
Jumper select Internal/external trigger supply
Jumper select HI/LOW Trigger
(On board P/B Switches only operate in the "LO" setting)
3 Jumper programmable modes:
1: Latching: Stays on until next signal
2: Trigger: Stays on as long as a signal present
3: Interlocked: relays cannot be on at the same time
(Next triggered relay releases previous energized relay)
Coil: 12VDC
Contacts: SPDT
Rated: 10A @ 250VAC/30VDC
Terminal Strips for Relay contacts, Power & control
0.1" Pitch headers for selections
L: 3" W: 2-1/4" HT: 3/4" WT: .2

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)
