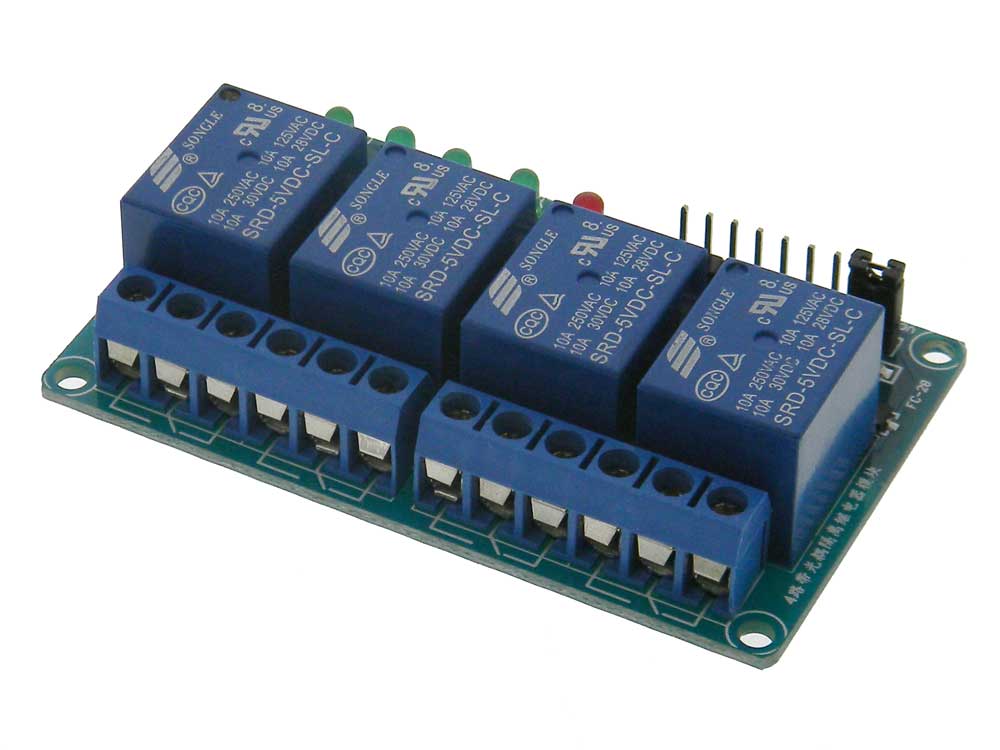

Quad Relay Board, Isolated 5V

Quad Relay Board, Isolated 5V

35360-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 35360 MP
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item

Availibilty: In Stock   Units: 11

Email this to a friend

 Detailed Description
View PDF Data Sheet

Opto-isolated Quad relay board designed to be driven a Arduino or other micro controllers.
LED indicatorsfor power & each input.
Board inputs are Opto isolated with a common Ground
Jumper select to use Vcc (5V) or a separate Vcc1 for relay power.
Power:5VDC (Relays)
Trigger: 5-15VDC <20mA (Each)
Connections: .1in. pitch header with Vcc, Vcc1 (Relay Power) Gnd, and an input pin for each relay.
Terminal Strip for Relay Contacts
Contacts: SPDT 10A @ 28VDC,30VDC,125VAC,250VAC
Output: Terminal strips.
L: 2-7/8" W: 1-3/4" H: 13/16" WT: .12

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)

 Product ReviewsClick here to review this item
LED indicators
The LED indicators on this device are very handy to indicate power on each relay.
