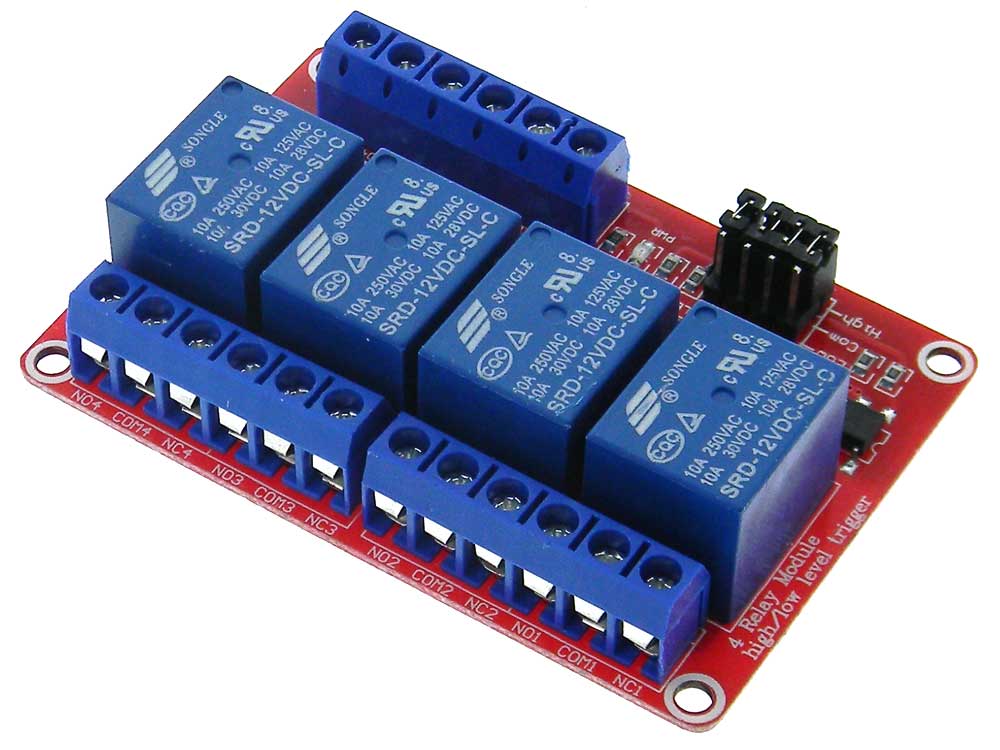

Quad Channel SPDT Relay Board, Isolated 12V

Quad Channel SPDT Relay Board, Isolated 12V

35787-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 35787 MP

Be the first to review this item
$6.95


Availibilty: In Stock   Units: 33
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
DATA SHEET


Opto-isolated Quad relay board designed to be driven by an Arduino or other microcontrollers.
LED indicatorsfor power & each input.
Board inputs are Opto isolated with a common Ground
Jumper select HIGH or LOW Trigger for each Relay
Power:12VDC (Relays)
Trigger: 5-15VDC <20mA (Each)
Connections: Trigger Select 0.1in. pitch header for each relay.
Terminal Strip for Power and Trigger Inputs
Terminal Strip for Relay Contacts
Contacts: SPDT 10A @ 28VDC,30VDC,125VAC,250VAC
L: 2-7/8" W: 2" H: 3/4" WT: .12
