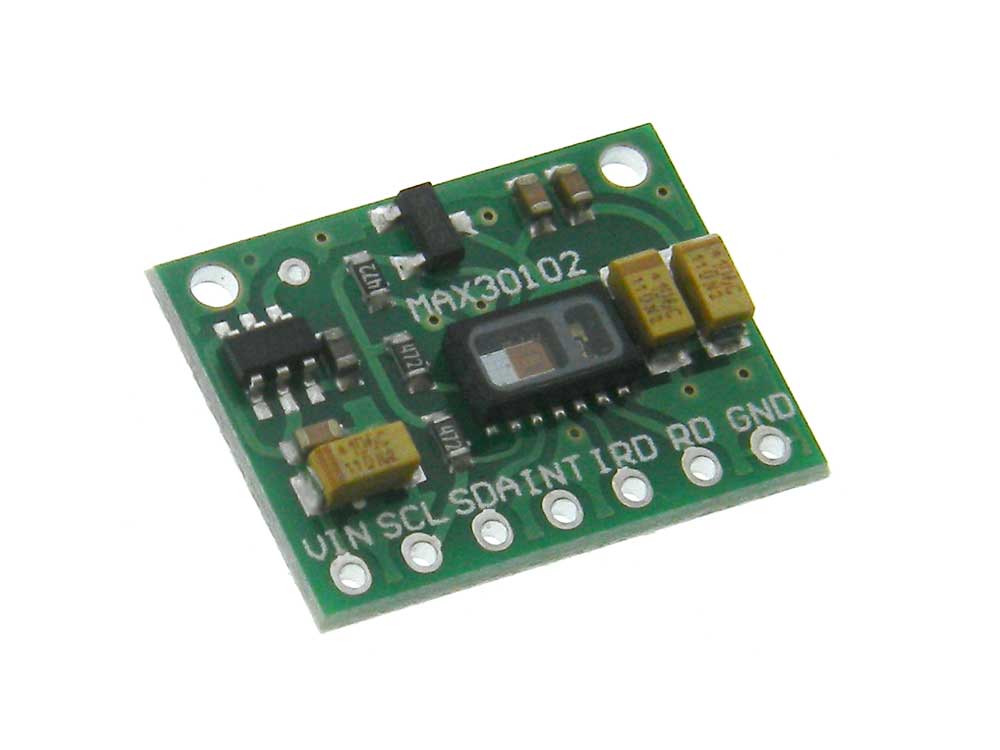

Pulse Oximeter and Heart-Rate Module MAX30102

Schematic


HX-JE RCW9185


MAX30102 Data


Code


Link

Note: For experimental use Only
Not for Medical Diagnosis
Tiny module for finger based monitoring of Heart rate & O2 levels.
2nd generation MAX 30102 sensor with I2C-compatible interface for connecting to a microcontroller (Arduino/Raspberry-Pi etc.).
This module is not stand-alone.
sampling, range etc. requires programming
Power: 5VDC @ 600ua operating/0.7ua shutdown
Red/IR LEDs
Sealed glass sensor
Some Useful Links available on our website Support Files
L: 11/16" W: 9/16" H: 1/8 WT: .01
