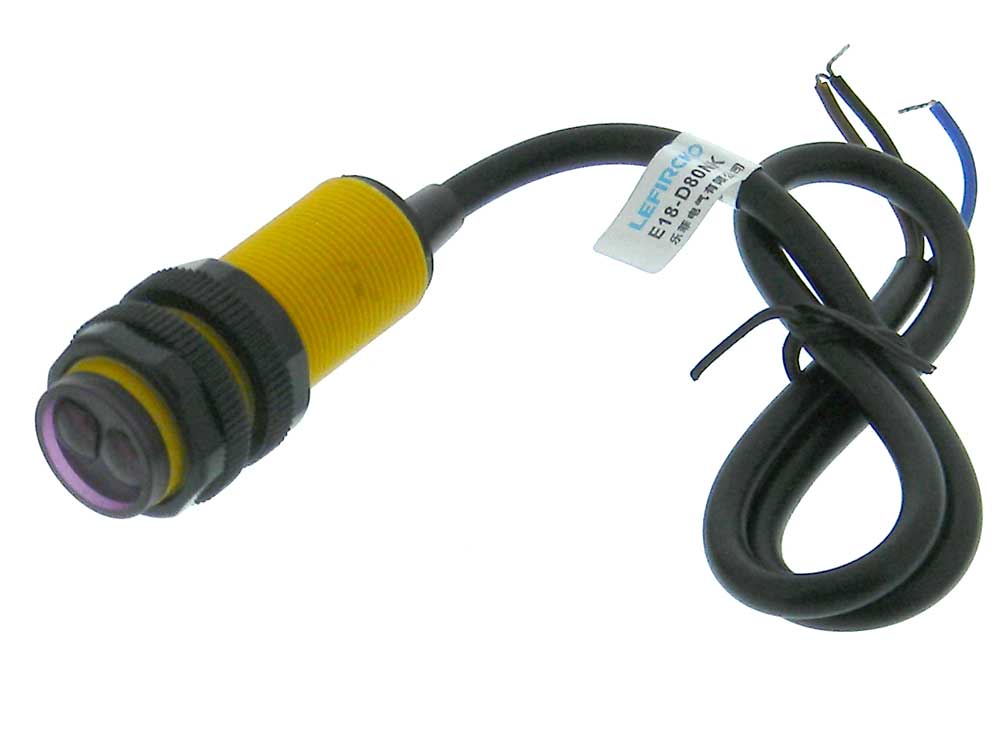

Infrared type prox switch with NPN Normally Open transistor switch. Output low upon detection. Range adjustment & indicator LED on Back. Plastic Case & Mounting Nuts.
Power: 5VDC
Output: Current Sink 100mA max (Recommend a 10K Pull-up)
Detection Range: 3-80cm
Detects by reflection of IR beam by object
17in. Leads
Brown: +5V Power Black: Output Blue: Gnd. Dia: 18mm L: 43mm WT: .06
