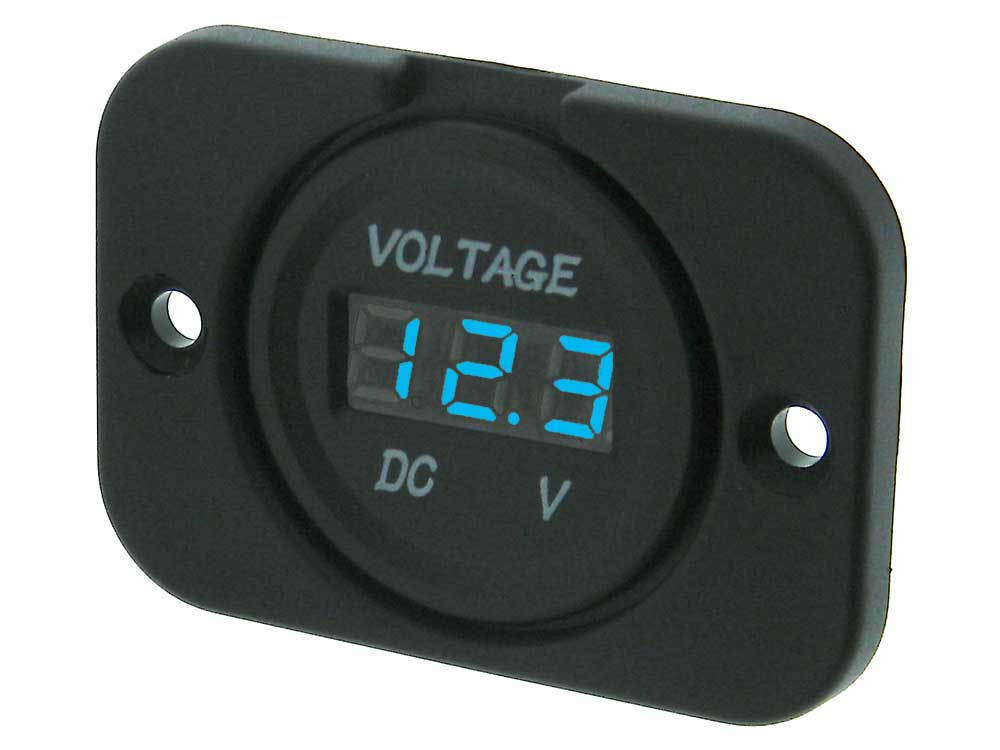

Round Mini DC Voltage Panel meter with a 3 digit Blue LED display
For panels up to 1/8" direct mount

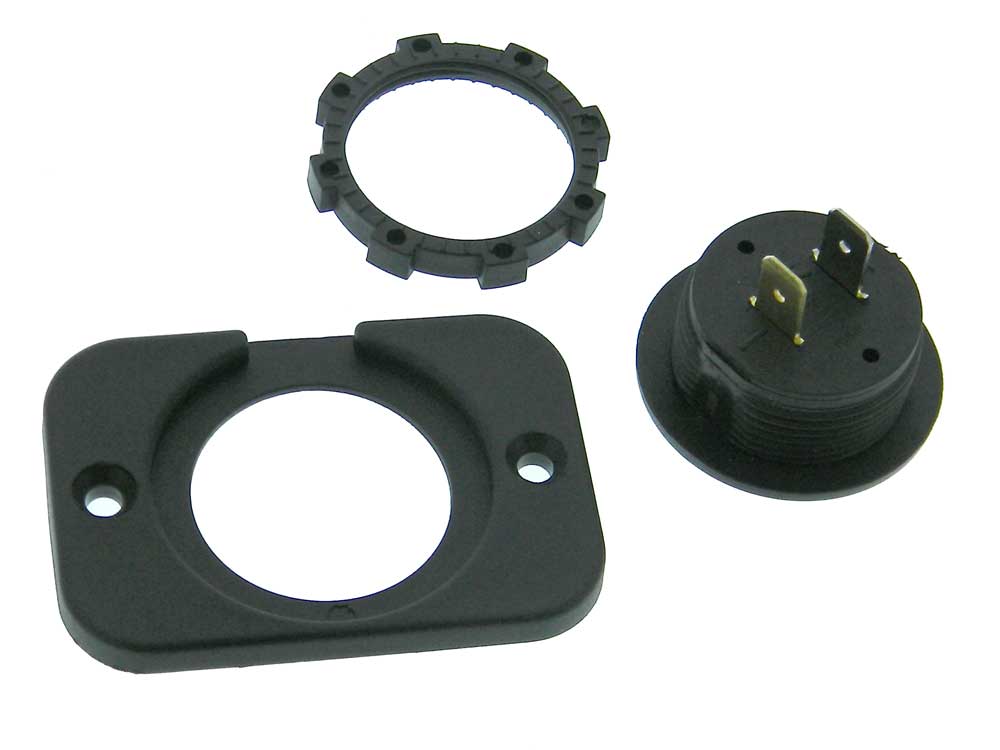

or thicker using the plastic Escutcheon Plate
Voltage Range: 5-30VDC
Current: ~ 16mA
Character Height: ~.25"
Temperature: -25"C"~ +65"C"
Terminals: 0.250" (6.35mm) Quick connect
Escutcheon Plate: 2-3/8" X 1-11/16"
Mounting Hole Meter only: 29mm (~1-1/8") Dia: 1-7/16" O/A D: 5/8" Body/ 1" O/A WT: .06
