Panel Meter, Snap-in, Multi Function AC Volts, 100Amps and 22KW
Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

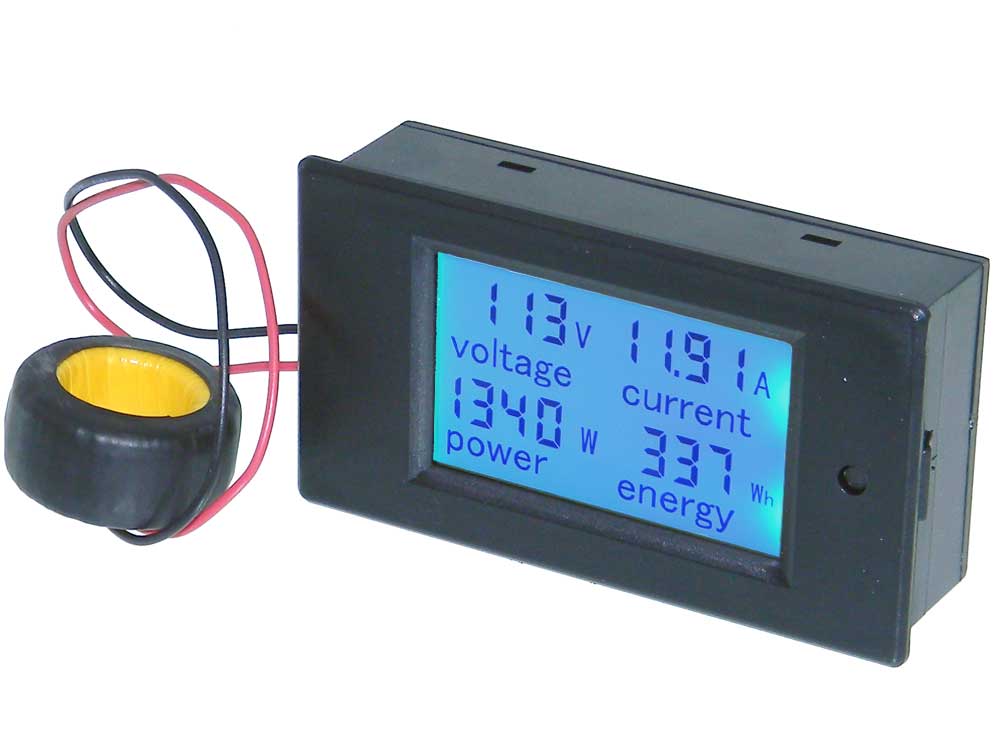

Blue back-lit, Snap-in LCD panel meter that measures
AC Volts, Amps, Watts, Watt hours.
Adjustable Overload function (over power alarm threshold: Backlight Flashes.) Ideal for submetering and monitoring.
Terminal Strip for Connections & Back Cover.
External Current Transformer can be mounted remotely.
Input Voltage: 80-260VAC
Resolution: 1V
Input Range Amps: 0-99.99A
Resolution: Amps: .01
Watts: 0-22KWmax
Resolution: <1KW=0.1W, <10KW=1W, <22KW=100W
Energy Used: 0-9999KWh
Resolution: <10KWH=0-9999WH, >10KWH=9999KWH
Accuracy: +-1% +-1LSD
Current Transformer I/D: 15mm
Cutout: 84.6mm X 44.6mm W: 3-9/16" H: 2" D: 1” WT: .2
