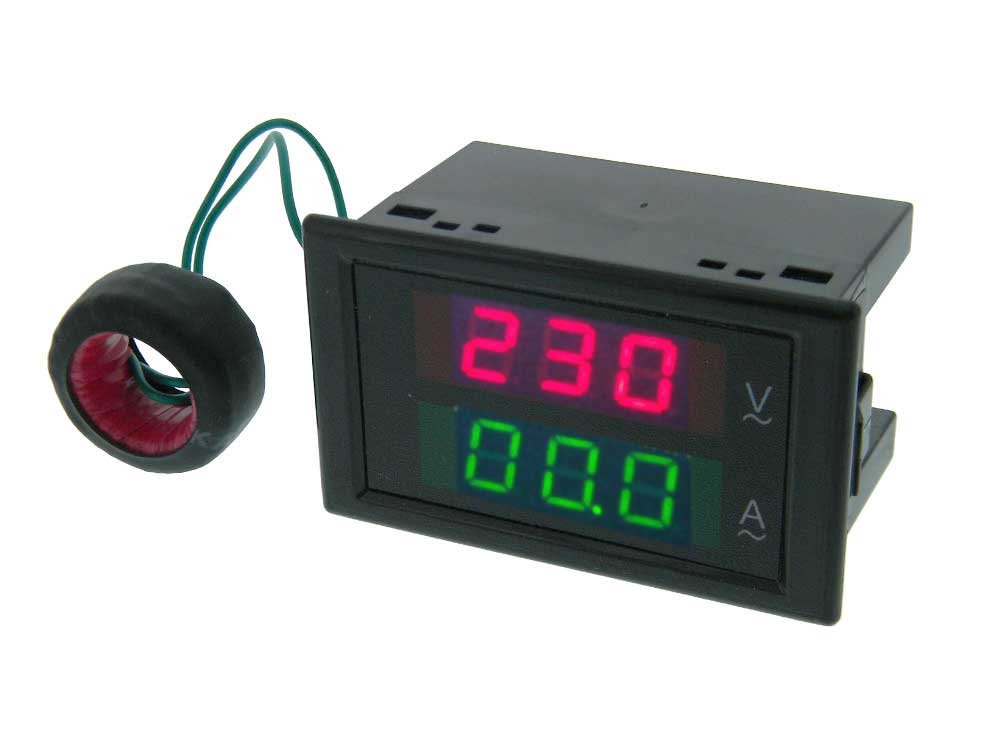

Snap-in LED panel meter contains both a 3digit AC Digital Volt Meter and a 3 digit AC Amp. meter. External Current Transformer can be mounted remotely up to 5m using 18AWG twisted pair.
Character Height: 0.38in.
Accuracy: +-1% +1LSD
Includes 100A Current Transformer with 15mm ID.
Terminal Strips for CT & Power
Cutout: 68mm X 38mm W: 2-3/4" H: 1-5/8" D: 1-5/8” WT: .16
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Used it to monitor my central HVAC unit. Installed the CT on one leg of the circuit feeding the HVAC unit. Allows me to tell at a glance if the HVAC is operating within specs.
Great! Thank you.
great, but still couldnt resist hacking it
Using it on my isolated/current limited/variac bench setup. Works great, only issue I had was that it would stop reading somewhere below 50VAC. Wasnt really an issue but I ground the trace off between the sense and supply sections in the circuit board and fed it a constant 110 to keep it running, and measuring, down to zero volts. Takes nearly 3 seconds to boot up, originally thought it was power supply, but its the brains taking so long.
