Panel Meter, LED Snap-in. 300V & 200A AC

DATA SHEET

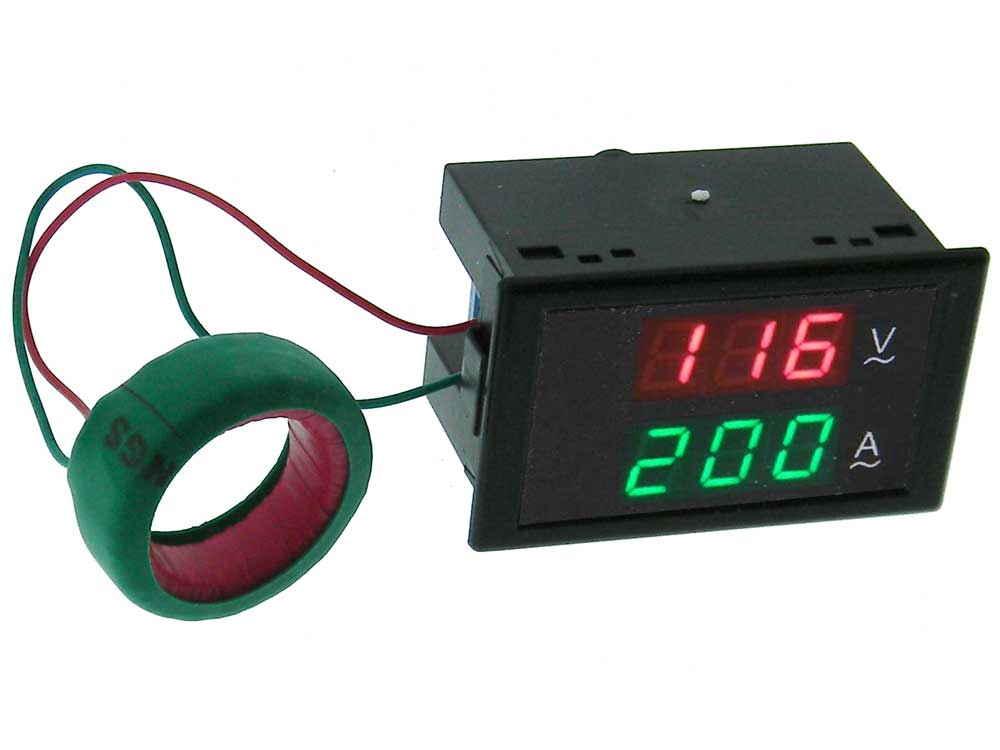

Enclosed, Snap-in LED panel meter contains both a 3 digit AC Volt Meter and a 3 digit AC Amp. meter. External Current Transformer can be mounted remotely
Character Height: 0.38in.
Voltage: 80-300VAC Resolution: 1V
Current: 0-200A Resolution: 1 Amp
Accuracy: +-1% +2LSD
Includes 200A Current Transformer with 25mm ID.
Cutout: W: 68mm H: 38mm
W: 2-3/4” H: 1-5/8” D: 1-1/2” WT: .22
